An interesting close-up of the new sidepod, where we can see how the air outlet around the exhaust pipe can also act as an airflow conditioner (downwashing):


User avatar
ing.
63
Joined: 15 Mar 2021, 20:00

Re: Ferrari SF23

Post

Interesting discussion on the benefits of a large undercut, including how SF-23 implemented this:

https://www.autosport.com/f1/news/the-m ... /10482217/

dialtone
dialtone
121
Joined: 25 Feb 2019, 01:31

Ferrari SF23

Post

ing. wrote:Interesting discussion on the benefits of a large undercut, including how SF-23 implemented this:

https://www.autosport.com/f1/news/the-m ... /10482217/
I’m having trouble connecting the title with what Stella says. To direct question Stella says: not so much downwash, more like wide sidepod.

Ferrari has had wide sidepods forever, it’s not really a change in phylosophy and when it comes to the rear even the article has to admit that it’s still inwash.

Like Clear says, Ferrari is taking inspiration from other cars and testing in their tunnel but it’s a stretch, even for this article, to say they are going downwash or shifting concept.

User avatar
Vanja #66
1562
Joined: 19 Mar 2012, 16:38

Re: Ferrari SF23

Post

dialtone wrote:
13 Jun 2023, 22:26
Like Clear says, Ferrari is taking inspiration from other cars and testing in their tunnel but it’s a stretch, even for this article, to say they are going downwash or shifting concept.
Pundits see a shape and they know right away what the flow does, even if the flow vis suggests something completely different (but hey, who cares about actual visualised flow!), or in Ferrari's case - very similar to how it was before, ie still inwashing sidepods.

And they call it a stall. A STALL!

#DwarvesAreNaturalSprinters
#BlessYouLaddie

User avatar
ing.
63
Joined: 15 Mar 2021, 20:00

Re: Ferrari SF23

Post

Vanja #66 wrote:
13 Jun 2023, 22:40
dialtone wrote:
13 Jun 2023, 22:26
Like Clear says, Ferrari is taking inspiration from other cars and testing in their tunnel but it’s a stretch, even for this article, to say they are going downwash or shifting concept.

Pundits see a shape and they know right away what the flow does, even if the flow vis suggests something completely different (but hey, who cares about actual visualised flow!), or in Ferrari's case - very similar to how it was before, ie still inwashing sidepods.

The pundit mentions that the Ferrari is still in-washing, BTW. Must have read your analysis is my guess. 👍🏻

Hard to know if this is the case because they couldn’t fully realize a down-washing design and shelf cooling within the cost cap, or if they’re still going their own way (in-washing) on this.

They obviously saw benefits in deepening the undercut, though, if they did so.

User avatar
ing.
63
Joined: 15 Mar 2021, 20:00

Re: Ferrari SF23

Post

dialtone wrote:
13 Jun 2023, 22:26
ing. wrote:Interesting discussion on the benefits of a large undercut, including how SF-23 implemented this:

https://www.autosport.com/f1/news/the-m ... /10482217/
I’m having trouble connecting the title with what Stella says. To direct question Stella says: not so much downwash, more like wide sidepod.

Ferrari has had wide sidepods forever, it’s not really a change in phylosophy and when it comes to the rear even the article has to admit that it’s still inwash.

Like Clear says, Ferrari is taking inspiration from other cars and testing in their tunnel but it’s a stretch, even for this article, to say they are going downwash or shifting concept.
Curious quote that by Stella. Possibly referring to the sidepods staying wide at the bottom of the ramp (at the back) versus a Coke-bottle shape.

Farnborough
Farnborough
100
Joined: 18 Mar 2023, 14:15

Re: Ferrari SF23

Post

ing. wrote:
13 Jun 2023, 22:57
Vanja #66 wrote:
13 Jun 2023, 22:40
dialtone wrote:
13 Jun 2023, 22:26
Like Clear says, Ferrari is taking inspiration from other cars and testing in their tunnel but it’s a stretch, even for this article, to say they are going downwash or shifting concept.

Pundits see a shape and they know right away what the flow does, even if the flow vis suggests something completely different (but hey, who cares about actual visualised flow!), or in Ferrari's case - very similar to how it was before, ie still inwashing sidepods.

The pundit mentions that the Ferrari is still in-washing, BTW. Must have read your analysis is my guess. 👍🏻

Hard to know if this is the case because they couldn’t fully realize a down-washing design and shelf cooling within the cost cap, or if they’re still going their own way (in-washing) on this.

They obviously saw benefits in deepening the undercut, though, if they did so.
Yes to inwash predominately still..."Meanwhile, the sunken bodywork that formed the bathtub on the outgoing solution has been transformed into more of a gulley and feeds airflow into the new downwash section. However, it's worth noting that Ferrari has fallen short of widening the bodywork here and is still broadly following the in-wash philosophy it previously employed."..... from that autosport article.
Last edited by Farnborough on 14 Jun 2023, 15:33, edited 1 time in total.

FDD
FDD
80
Joined: 29 Mar 2019, 01:08

Re: Ferrari SF23

Post

Vanja #66 wrote:
13 Jun 2023, 22:40
dialtone wrote:
13 Jun 2023, 22:26
Like Clear says, Ferrari is taking inspiration from other cars and testing in their tunnel but it’s a stretch, even for this article, to say they are going downwash or shifting concept.
Pundits see a shape and they know right away what the flow does, even if the flow vis suggests something completely different (but hey, who cares about actual visualised flow!), or in Ferrari's case - very similar to how it was before, ie still inwashing sidepods.

Crystal clear

jambuka
jambuka
28
Joined: 24 Feb 2023, 07:52

Re: Ferrari SF23

Post

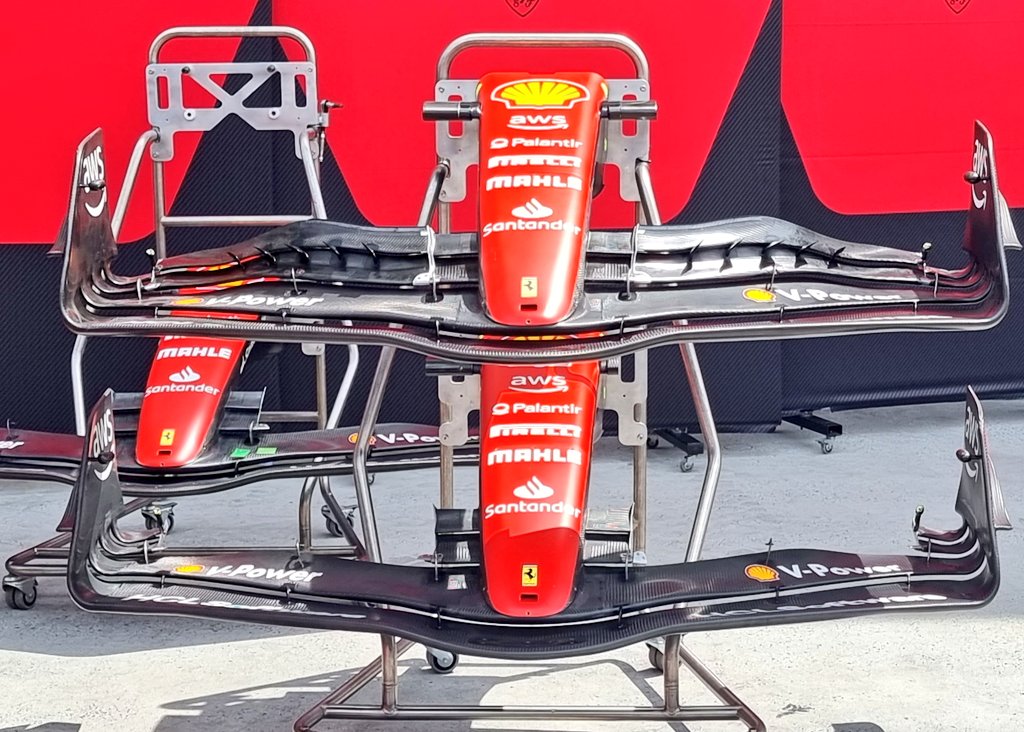

Front wing with only 2 flaps by Ferrari for Canada. Very interesting !! I thought they wanted a more loaded FW.


dialtone
dialtone
121
Joined: 25 Feb 2019, 01:31

Re: Ferrari SF23

Post

That’s not fully assembled

AR3-GP
AR3-GP
365
Joined: 06 Jul 2021, 01:22

Re: Ferrari SF23

Post

dialtone wrote:
14 Jun 2023, 20:23
That’s not fully assembled
That will NOT help with the understeer :lol:
A lion must kill its prey.

dialtone
dialtone
121
Joined: 25 Feb 2019, 01:31

Re: Ferrari SF23

Post

AR3-GP wrote:
dialtone wrote:
14 Jun 2023, 20:23
That’s not fully assembled
That will NOT help with the understeer :lol:
Not with that attitude


Sent from my iPhone using Tapatalk

Ozan
Ozan
10
Joined: 05 Jan 2012, 01:50

Re: Ferrari SF23

Post

that's monza front wing

Andi76
Andi76
428
Joined: 03 Feb 2021, 20:19

Re: Ferrari SF23

Post

dialtone wrote:
13 Jun 2023, 22:26
ing. wrote:Interesting discussion on the benefits of a large undercut, including how SF-23 implemented this:

https://www.autosport.com/f1/news/the-m ... /10482217/
I’m having trouble connecting the title with what Stella says. To direct question Stella says: not so much downwash, more like wide sidepod.

Ferrari has had wide sidepods forever, it’s not really a change in phylosophy and when it comes to the rear even the article has to admit that it’s still inwash.

Like Clear says, Ferrari is taking inspiration from other cars and testing in their tunnel but it’s a stretch, even for this article, to say they are going downwash or shifting concept.
I feel the same way. Above all, some of what he writes doesn't necessarily make much sense. I don't think he really understood what Stella wanted to tell him...

User avatar
Vanja #66
1562
Joined: 19 Mar 2012, 16:38

Re: Ferrari SF23

Post

ing. wrote:
13 Jun 2023, 22:57
The pundit mentions that the Ferrari is still in-washing, BTW. Must have read your analysis is my guess. 👍🏻

Hard to know if this is the case because they couldn’t fully realize a down-washing design and shelf cooling within the cost cap, or if they’re still going their own way (in-washing) on this.

They obviously saw benefits in deepening the undercut, though, if they did so.
Tbh, I only reacted to dialtone's post at the time, didn't really look at the article, so that's on me :)

Downwash-only sides are much different in terms of flow management, as is the big shelf cooling, than what Ferrari started with F1-75 and especially vs luanch-SF-23. It's not just the cost cap, you need to reset every surface and start figuring out all the details of flow management, tyre squirt, yaw/pitch/roll behaviour etc and that takes a lot of time. It doesn't matter how many man-hours you put into it, you can't cut corners while you re-learn the aero philosophy of another concept.

Bigger undercut is likely connected with floor-edge philosophy, and should also cut a bit of drag on its own. Although we need to see what's going on with top-speed with the same RW design like last year first, before we draw any definitive drag conclusions about this new configuration, which should be possible now in Canada.
And they call it a stall. A STALL!

#DwarvesAreNaturalSprinters
#BlessYouLaddie
