Mclaren MCL40

[Nicktendo86]

Dr Obbs says there is a diffuser cutout. I can’t see it but he’s insisting it is there

https://x.com/dr_obbs/status/2016591820 ... 9iyhp-jHmg

[FNTC]

I think its just the space between the outside of the diffuser and the other strakes, not a hole in the actual diffuser

[organic]

Dr Obbs says there is a diffuser cutout. I can’t see it but he’s insisting it is there

https://x.com/dr_obbs/status/2016591820 ... 9iyhp-jHmg

The thing he believes/has highlighted as the cutout is just the diffuser winglet

[Emag]

Dr Obbs says there is a diffuser cutout. I can’t see it but he’s insisting it is there

https://x.com/dr_obbs/status/2016591820 ... 9iyhp-jHmg

https://i.postimg.cc/5N1mDh02/image.png

It is a bit weird honestly, I can't 100% confirm what exactly they're doing here.

But, it seems like they might be "extending" this bit from outer floor into the cut of the diffuser as a strake? So it looks like a full piece. I am trying to find some images of other cars from this angle to confirm.

[Badger]

His evidence for that is that "it's there", and he draws a line where there is nothing. Sometimes I feel like these "analysts" are just engagement farming, telling fans what they want to hear. If you can't see it...

[organic]

His evidence for that is that "it's there", and he draws a line where there is nothing. Sometimes I feel like these "analysts" are just engagement farming, telling fans what they want to hear. If you can't see it... https://pbs.twimg.com/media/G_xaag9XwAA ... name=large

I think brakeboosted has a view that clears up the issue quite easily.



We're seeing the leading edge of the diffuser winglets

The carbon is really quite reflective

[Emag]

His evidence for that is that "it's there", and he draws a line where there is nothing. Sometimes I feel like these "analysts" are just engagement farming, telling fans what they want to hear. If you can't see it... https://pbs.twimg.com/media/G_xaag9XwAA ... name=large

I think he is trying to make this point :



But even if it is like this, I don't think it's in the same spirit with what the others are doing.

[Badger]

His evidence for that is that "it's there", and he draws a line where there is nothing. Sometimes I feel like these "analysts" are just engagement farming, telling fans what they want to hear. If you can't see it... https://pbs.twimg.com/media/G_xaag9XwAA ... name=large

I think brakeboosted has a view that clears up the issue quite easily.

https://i.ibb.co/PG3jpYGN/20260128-201645.jpg

We're seeing the leading edge of the diffuser winglets

The carbon is really quite reflective

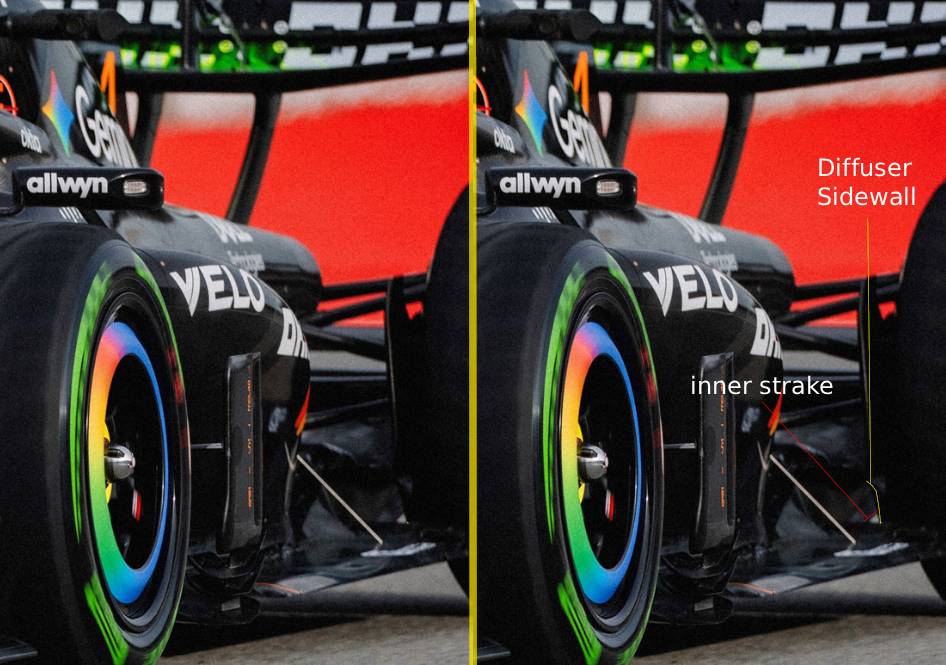

That's a standard part afaik. And you can clearly see the diffuser wall extending backwards, it doesn't have a hole in it.

[vorticism]

The diffuser Fence (FIA's term) is more outboard than others hence it's visible behind the foxhole.

[deadhead]

Showing the real deal in the renders is pretty cool

[LionsHeart]

Dr Obbs says there is a diffuser cutout. I can’t see it but he’s insisting it is there

https://x.com/dr_obbs/status/2016591820 ... 9iyhp-jHmg

He say: “Also a curious triangular shape to the diffuser winglet. You can see this at the rear of the car. I'm assuming that's the winglet, because I won't think the diffuser sidewall is allowed to be this angled”.

It's not the mouse hole that many have raised, but rather the shape of the diffuser at the rear, where he mentioned a triangular shape. My point is that the side view most likely points not to the diffuser geometry, but to the flaps and vertical elements of the brake ducts. Typically, the geometry of the diffuser's trailing edge is always strictly vertical relative to the longitudinal axis of the chassis.

[SiLo]

The airbox is not only big, it’s big quite a long way back too.

[Emag]

The airbox is not only big, it’s big quite a long way back too.

I suppose they had to do it because the undercut is quite massive (you can refer to another post I made in the previous page).

Would be interesting to see a comparison between the RedBull's centerline and McLaren's.

[Avocado]

[SiLo]

The airbox is not only big, it’s big quite a long way back too.

I suppose they had to do it because the undercut is quite massive (you can refer to another post I made in the previous page).

Would be interesting to see a comparison between the RedBull's centerline and McLaren's.

I didn’t mean the airbox was rearwards, more that it’s big and has volume quite a lot towards the rear (for clarity)
