Flo-viz test

No signs of detatchment on FW end-plate. Also note flo-viz pattern of foot-plate showing the formation of a vortex



Positive pattern on the undercut as well




M840TR
M840TR
315
Joined: 13 Apr 2018, 21:04

Re: McLaren MCL34

Post





M840TR
M840TR
315
Joined: 13 Apr 2018, 21:04

Re: McLaren MCL34

Post


Lucky
Lucky
157
Joined: 15 Feb 2014, 09:23

Re: McLaren MCL34

Post


FMP
FMP
2
Joined: 05 Mar 2018, 15:08

Re: McLaren MCL34

Post

M840TR wrote:
18 Feb 2019, 19:50
Flo-viz test

No signs of detatchment on FW end-plate. Also note flo-viz pattern of foot-plate showing the formation of a vortex

https://imgr4.auto-motor-und-sport.de/C ... 425214.jpg

https://imgr3.auto-motor-und-sport.de/C ... 425213.jpg

Positive pattern on the undercut as well

https://imgr2.auto-motor-und-sport.de/C ... 425212.jpg

https://imgr4.auto-motor-und-sport.de/C ... 425215.jpg

https://imgr2.auto-motor-und-sport.de/C ... 425216.jpg
Thank you for the pics and short explanation. But being the novice I am, I'm wondering on the front wing, the two upper elements barely have any flow-viz. It should be just that they didn't paint it right?

User avatar
McG
-19
Joined: 16 Feb 2011, 17:45

Re: McLaren MCL34

Post

FMP wrote:
18 Feb 2019, 22:17
M840TR wrote:
18 Feb 2019, 19:50
Flo-viz test

No signs of detatchment on FW end-plate. Also note flo-viz pattern of foot-plate showing the formation of a vortex

https://imgr4.auto-motor-und-sport.de/C ... 425214.jpg

https://imgr3.auto-motor-und-sport.de/C ... 425213.jpg

Positive pattern on the undercut as well

https://imgr2.auto-motor-und-sport.de/C ... 425212.jpg

https://imgr4.auto-motor-und-sport.de/C ... 425215.jpg

https://imgr2.auto-motor-und-sport.de/C ... 425216.jpg
Thank you for the pics and short explanation. But being the novice I am, I'm wondering on the front wing, the two upper elements barely have any flow-viz. It should be just that they didn't paint it right?
I think by that point the air is starting to detatch as it has been conditioned by the prior elements, creating a vortex to send farther rearwards.
Finally, everyone knows that Red Bull is a joke and Max Verstappen is overrated.

Jef Patat
Jef Patat
61
Joined: 06 May 2011, 14:40

Re: McLaren MCL34

Post

There's just no paint there. Flow hitting the top of the front wing should be a 'no-brainer' as it's the first clean air hitting the car. Theres more interest in the underside of the wing where there's more interest in the underside where detachment is more likely to happen. Also keep in mind that the outer side of the win is not really supposed to create downforce. There's a lot of dirty air messing coming from above because of the rotating wheel which messes with the flow. That's why the last couple of ears there we all these fancy turning vanes at those positions, managing airflow is more important than downforce at that point.

User avatar
DiogoBrand
73
Joined: 14 May 2015, 19:02
Location: Brazil

Re: McLaren MCL34

Post

I'm still wondering about the little shark fin extension for the driver's number. Did they not go to the full extent allowed by the regulations, or is there that allowed them to go beyond the permitted lenght just for that little area?
What would be the benefit of having a shorter shark fin than what is allowed?

User avatar
charliesmithhd
67
Joined: 10 Jul 2018, 17:53

Re: McLaren MCL34

Post

DiogoBrand wrote:
18 Feb 2019, 23:23
I'm still wondering about the little shark fin extension for the driver's number. Did they not go to the full extent allowed by the regulations, or is there that allowed them to go beyond the permitted lenght just for that little area?
What would be the benefit of having a shorter shark fin than what is allowed?
I guess if they don’t see any positive effects of the full one it will save weight

User avatar
DiogoBrand
73
Joined: 14 May 2015, 19:02
Location: Brazil

Re: McLaren MCL34

Post

charliesmithhd wrote:
18 Feb 2019, 23:38
DiogoBrand wrote:
18 Feb 2019, 23:23
I'm still wondering about the little shark fin extension for the driver's number. Did they not go to the full extent allowed by the regulations, or is there that allowed them to go beyond the permitted lenght just for that little area?
What would be the benefit of having a shorter shark fin than what is allowed?
I guess if they don’t see any positive effects of the full one it will save weight
If there is no benefit to a shark fin then there's no reason to put one there. But considering that after the rear wing was lowered everyone started using shark fins as large as possible, with the exception of Mercedes in 2017, I just don't see why now it isn't benefitial anymore.

rccrdc
rccrdc
15
Joined: 16 Mar 2015, 13:41

Re: McLaren MCL34

Post


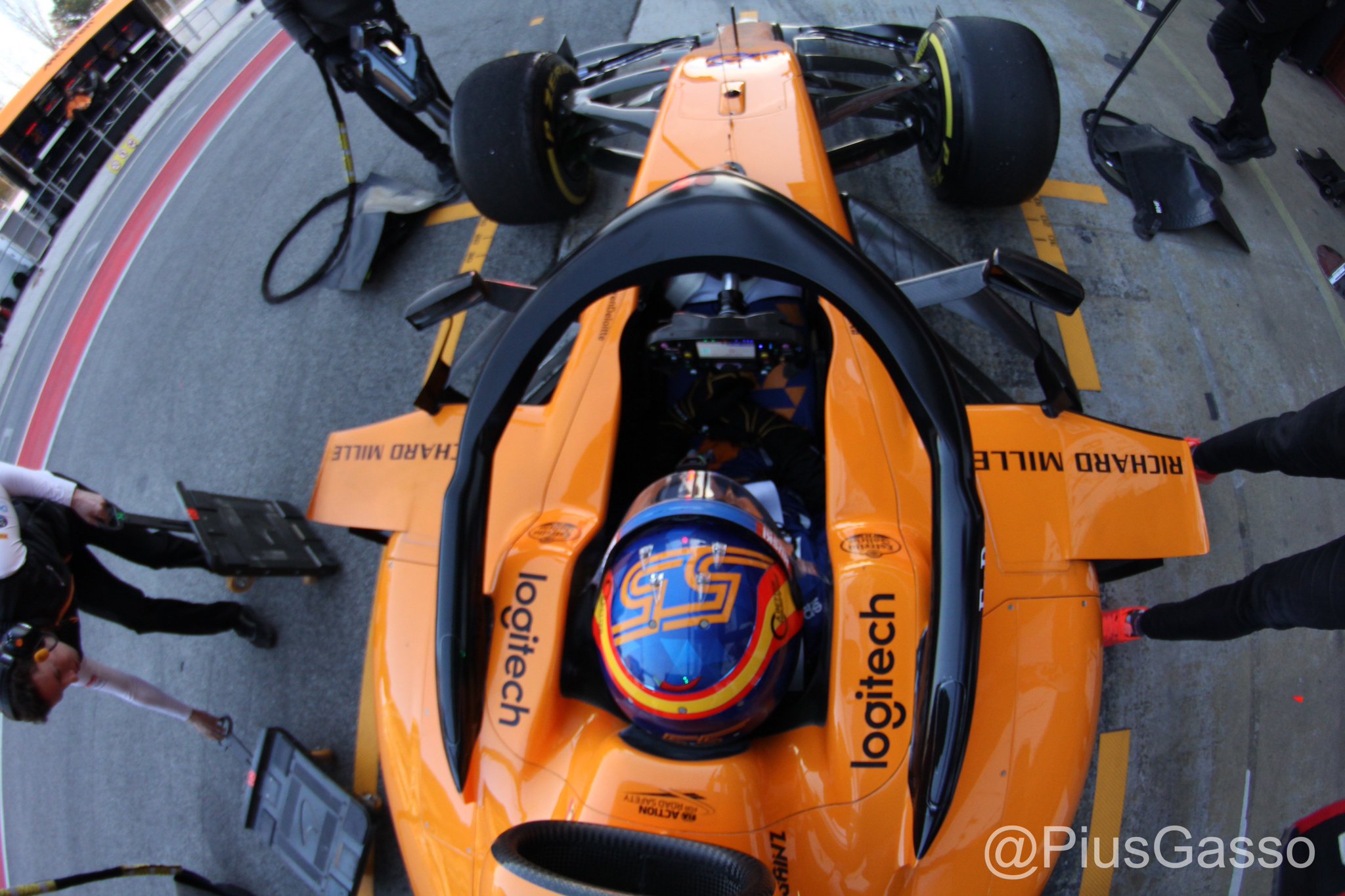

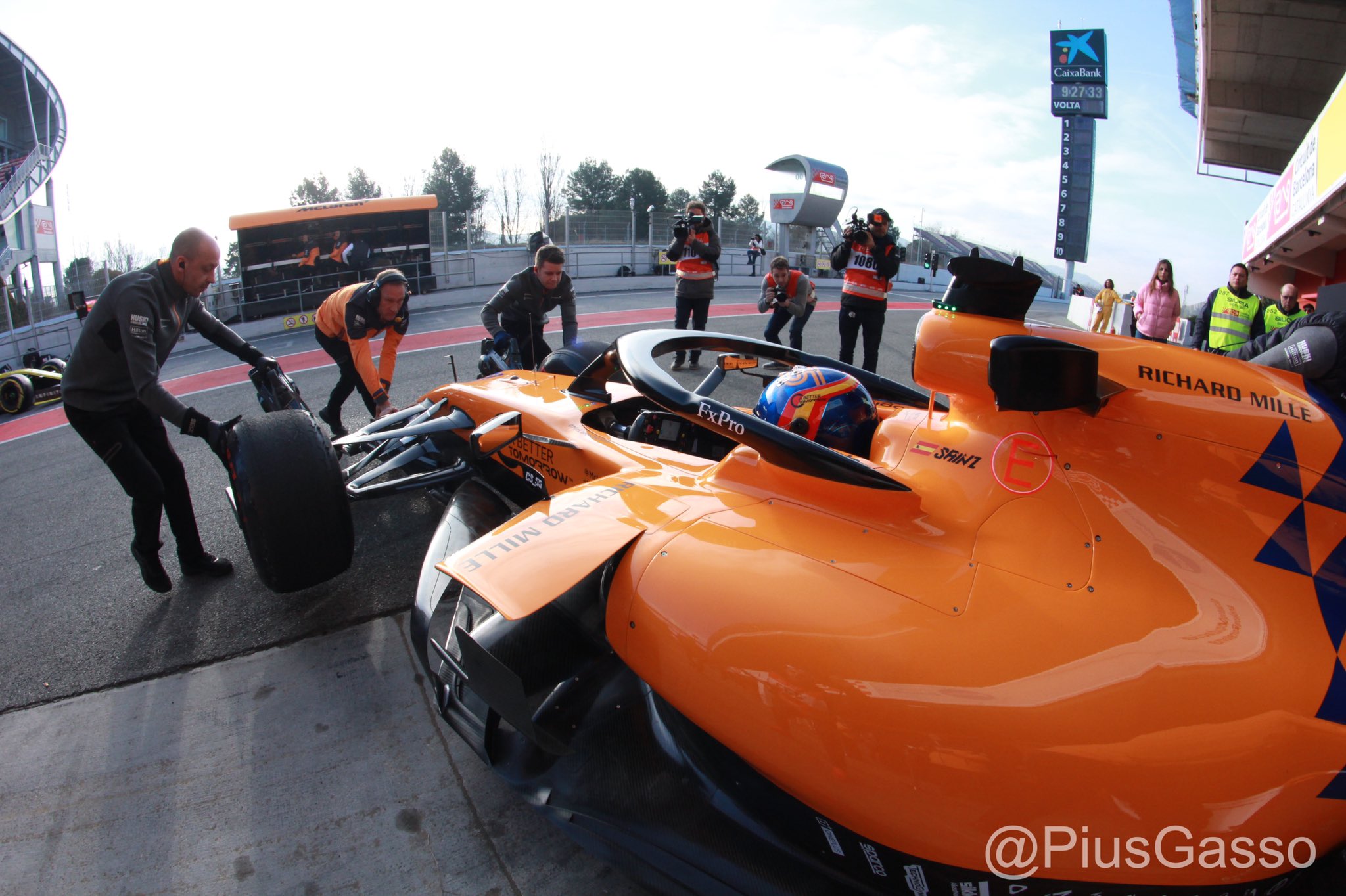

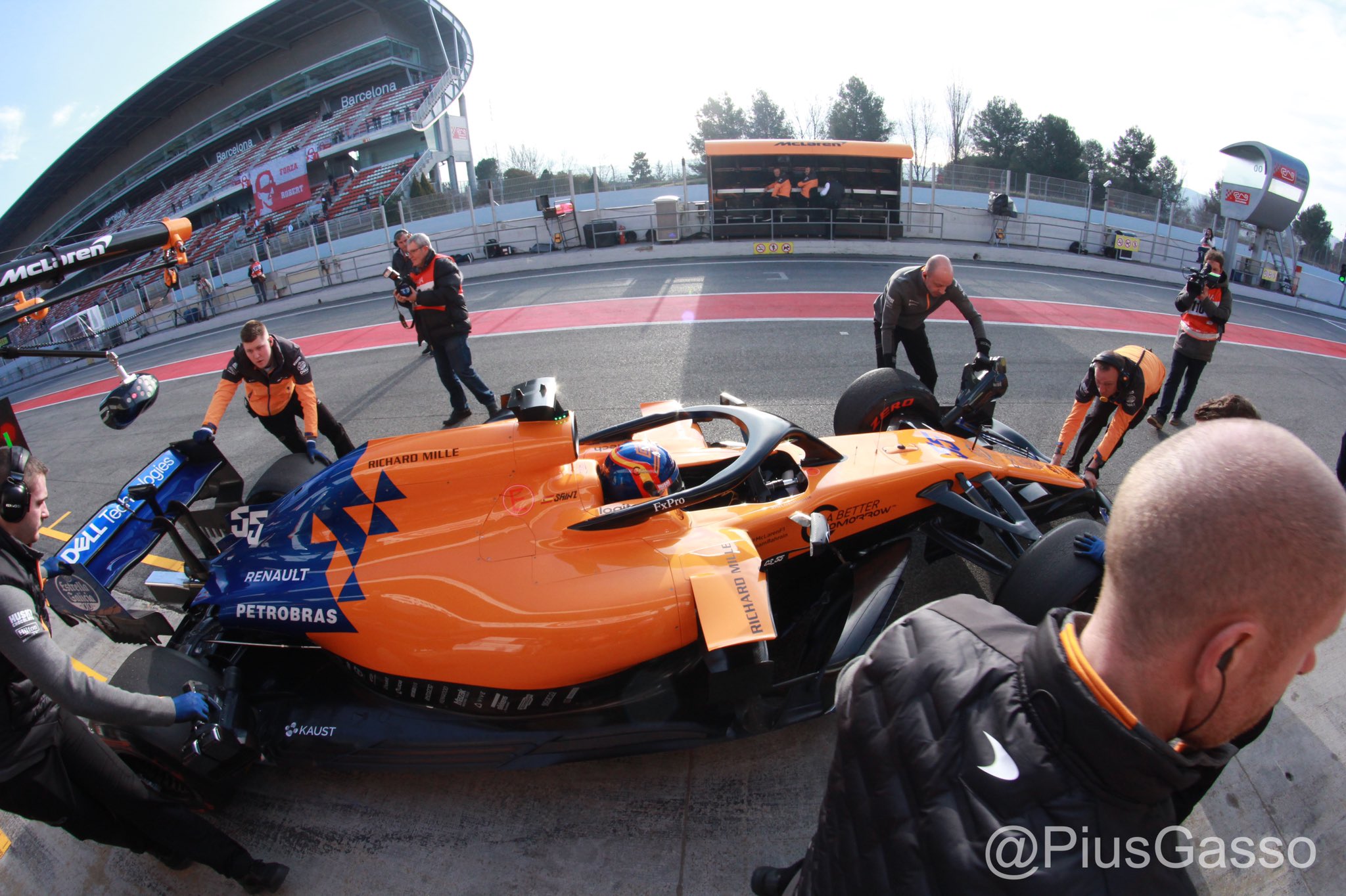

PhillipM
PhillipM
386
Joined: 16 May 2011, 15:18
Location: Over the road from Boothy...

Re: McLaren MCL34

Post

Doesn't seem to be any flow issues back on the sidepod where the old kink was at the radiator edge any more either from what bit has travelled down there - but we'll have wait for some more flow vis further down the car/better photo's.

User avatar
zoroastar
7
Joined: 31 Aug 2017, 08:04

Re: McLaren MCL34

Post

DiogoBrand wrote:
18 Feb 2019, 23:46
charliesmithhd wrote:
18 Feb 2019, 23:38
DiogoBrand wrote:
18 Feb 2019, 23:23
I'm still wondering about the little shark fin extension for the driver's number. Did they not go to the full extent allowed by the regulations, or is there that allowed them to go beyond the permitted lenght just for that little area?
What would be the benefit of having a shorter shark fin than what is allowed?
I guess if they don’t see any positive effects of the full one it will save weight
If there is no benefit to a shark fin then there's no reason to put one there. But considering that after the rear wing was lowered everyone started using shark fins as large as possible, with the exception of Mercedes in 2017, I just don't see why now it isn't benefitial anymore.
i want to say that mclaren didnt start tests with a sharkfin in either 2016 or 2017, only to have it before testing was over. i would be surprised if they dont at least try one.

M840TR
M840TR
315
Joined: 13 Apr 2018, 21:04

Re: McLaren MCL34

Post

The very first onboard video of the car. A bit oversteery.

https://cdn-b-east.streamable.com/video ... 1550563719
