Anyone notice FW tweaks on the W13🤔

User avatar
RZS10
359
Joined: 07 Dec 2013, 01:23

Re: Mercedes W13

Post

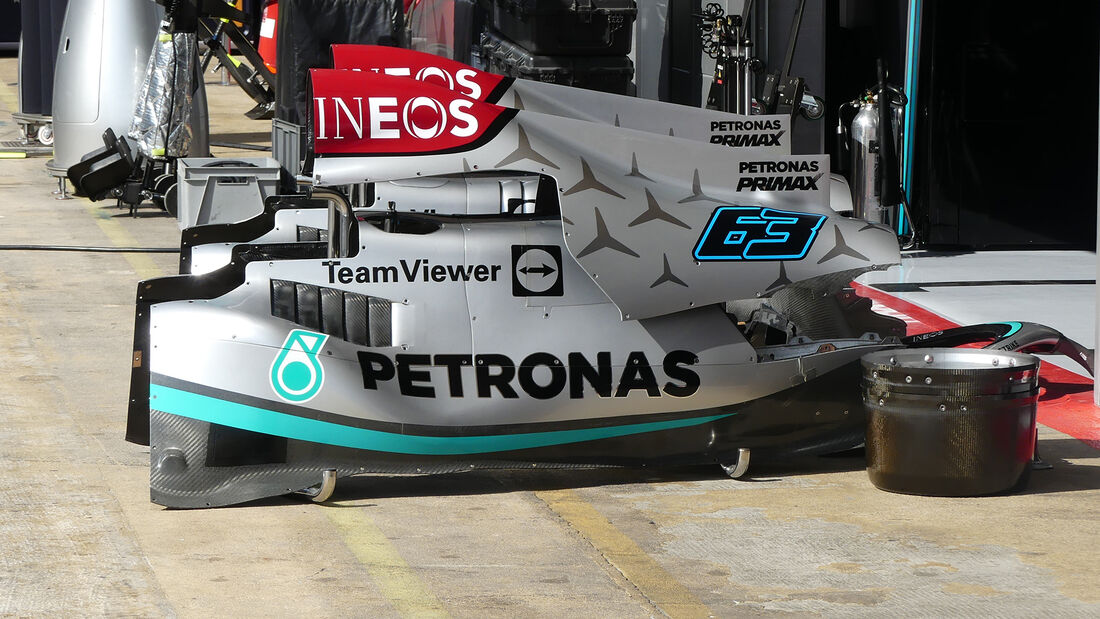

Interesting that they do not mention the imho apparent changes to the area where the floor connects to the engine cover.
New
Old

Note how the black panel sits higher relative to the sips and is partially covered by the green stripe, the petronas logo has not moved (check it's positioning and size relative to the panels and their seams) yet the black/bare carbon portion at the bottom appears to be lower in height, the edge at the bottom arguably looks different as well.

This was already mentioned a few pages back tbf ... whether it's changes to the engine cover and where it connects to the floor, higher tunnels or a thicker floor is anyone's guess

User avatar
AeroDynamic
349
Joined: 28 Sep 2021, 12:25
Location: La règle du jeu

Re: Mercedes W13

Post

You can notice what RZS is talking about in this shot a little bit as well. Its been re-profiled and may be evidence that the Venturi tunnels are bigger in that area. It's at the very least suggestive of the underfloor being developed and changed.

To point this out directly again, the floor has a steeper slope that meets the body of the car towards the bulge point behind the zero pod. (Right above where the 'e-perfomance' logo used to be in the previous floor spec)
Last edited by AeroDynamic on 20 May 2022, 12:46, edited 1 time in total.

User avatar
_cerber1
258
Joined: 18 Jan 2019, 21:50
Location: From Russia with love

Re: Mercedes W13

Post

@AlbertFabrega

User avatar
AeroDynamic
349
Joined: 28 Sep 2021, 12:25
Location: La règle du jeu

Re: Mercedes W13

Post


GrizzleBoy
GrizzleBoy
33
Joined: 05 Mar 2012, 04:06

Re: Mercedes W13

Post

Old Pre miami front wing end plate spec on those pics.

User avatar
pocketmoon
0
Joined: 17 Oct 2011, 23:14

Re: Mercedes W13

Post

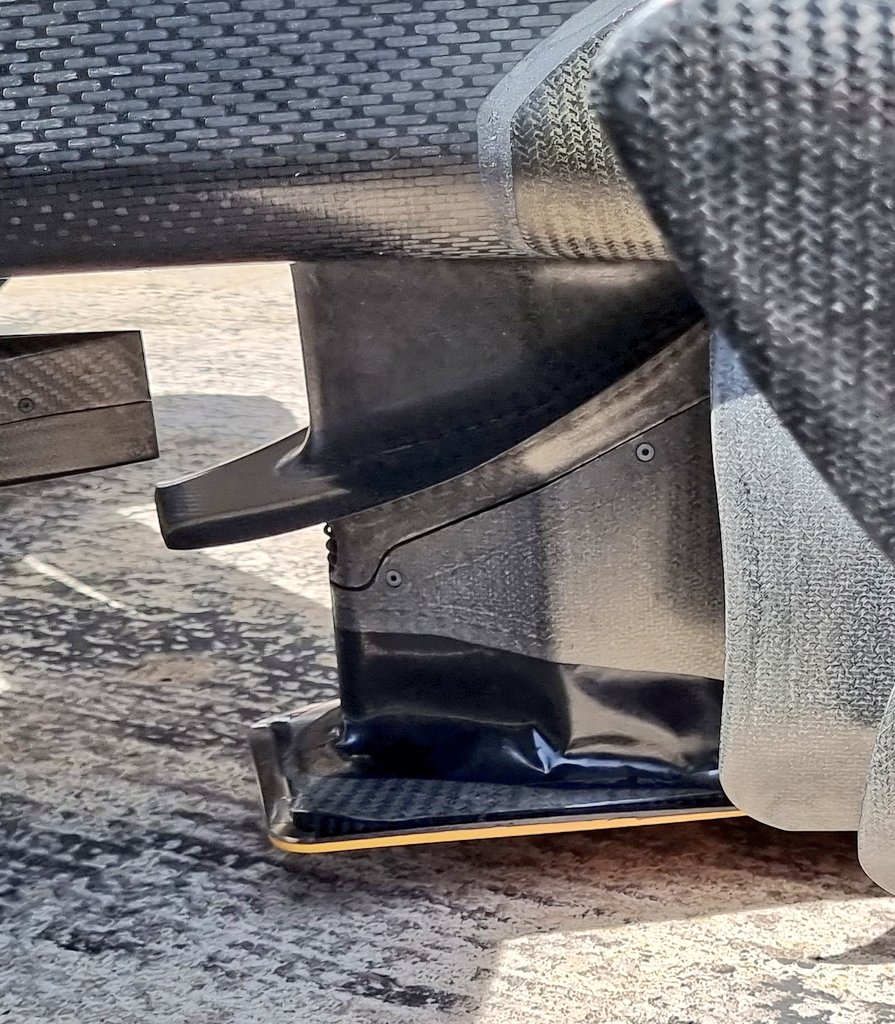

Whats's the function of the three metalic connectors here ? Are we seeing the top of the 'skate' (which is hidden underneath) ?


KeiKo403
KeiKo403
7
Joined: 18 Feb 2011, 00:16

Re: Mercedes W13

Post

pocketmoon wrote:
20 May 2022, 13:48
Whats's the function of the three metalic connectors here ? Are we seeing the top of the 'skate' (which is hidden underneath) ?

https://i.ibb.co/c83Gg19/sk.png
To my untrained eye it looks like a late addition and bolted on last minute

Edit - my untrained eyes were wrong. Correct answer in the post below
Last edited by KeiKo403 on 20 May 2022, 13:57, edited 1 time in total.

User avatar
RZS10
359
Joined: 07 Dec 2013, 01:23

Re: Mercedes W13

Post

pocketmoon wrote:
20 May 2022, 13:48
Whats's the function of the three metalic connectors here ?
It's a completely separate piece that is being held by those connectors

KeiKo403
KeiKo403
7
Joined: 18 Feb 2011, 00:16

Re: Mercedes W13

Post

Anyone watching FP1 live able to give an update on porpoising levels?

User avatar
organic
1055
Joined: 08 Jan 2022, 02:24
Location: Cambridge, UK

Re: Mercedes W13

Post


Sevach
Sevach
1081
Joined: 07 Jun 2012, 17:00

Re: Mercedes W13

Post


Are these FW edges different again?

morefirejules08
morefirejules08
4
Joined: 11 Feb 2012, 14:21

Re: Mercedes W13

Post

Miami FW endplates are back on
