We don't know where the cars were and at what speeds/lateral/longitudinal loads and/or bumps were being put into the suspension.

Also the idea that Mclaren's "tire management and consistency" comes from "higher ride height" is not right.

[SilviuAgo]

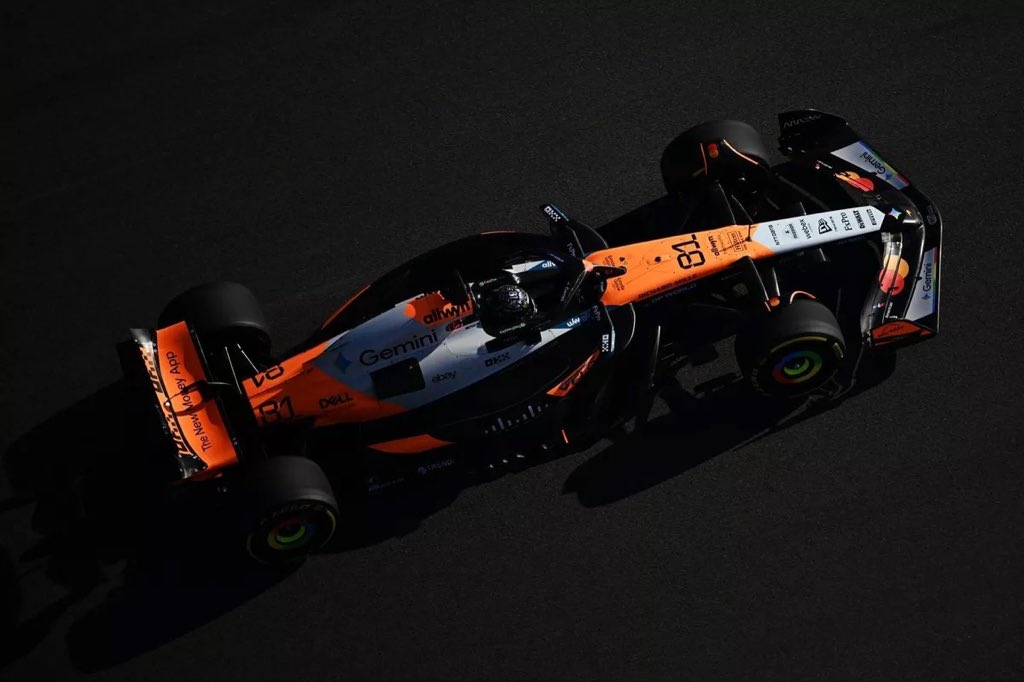

Not the best way to see McLaren floor or a 360 of MCL39 but some nice aero details and design parts can be spotted (helped by the sun lightening) .

[Farnborough]

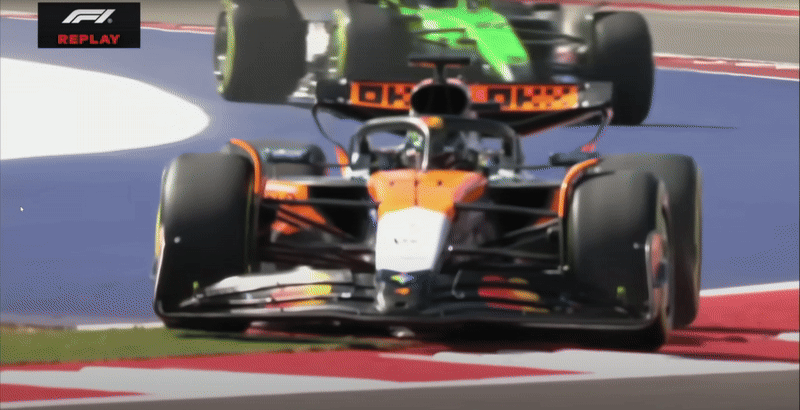

https://i.postimg.cc/sXv9xs5F/PIASTRI-S ... Sprint.gif

Interesting point here is that (without the spring/damper restraint) the suspension total compression theoretical is displayed as all the wishbones etc look intact.

The potential in "bump" capacity is in view here for latent mechanical arrangement.

[AR3-GP]

https://i.postimg.cc/sXv9xs5F/PIASTRI-S ... Sprint.gif

Interesting point here is that (without the spring/damper restraint) the suspension total compression theoretical is displayed as all the wishbones etc look intact.

The potential in "bump" capacity is in view here for latent mechanical arrangement.

I thought it was interesting for that reason exactly. It also shows how stiff these cars are. With just 3 wheels on the ground, the platform doesn't drop much if any at rolling speed.

[SilviuAgo]

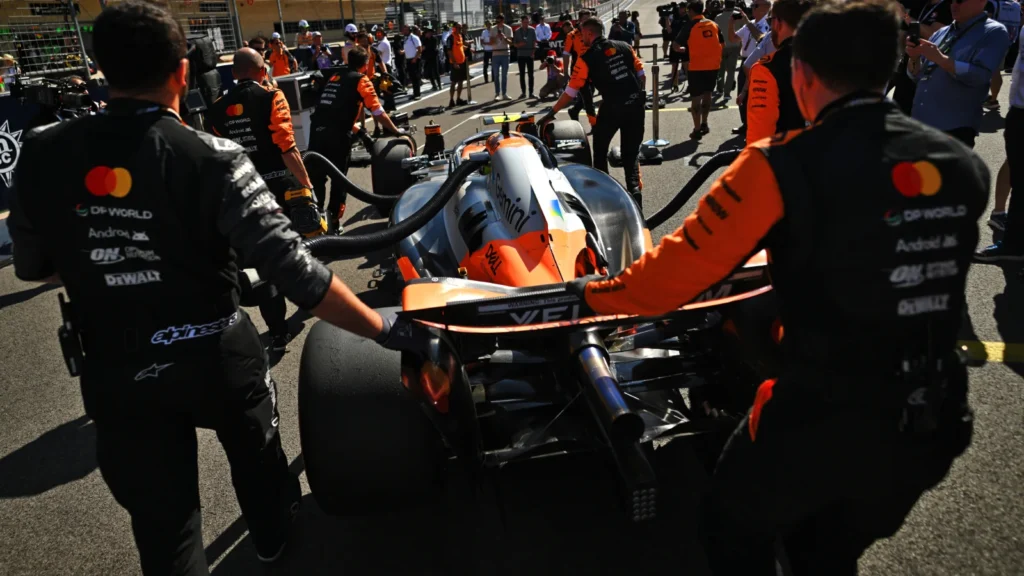

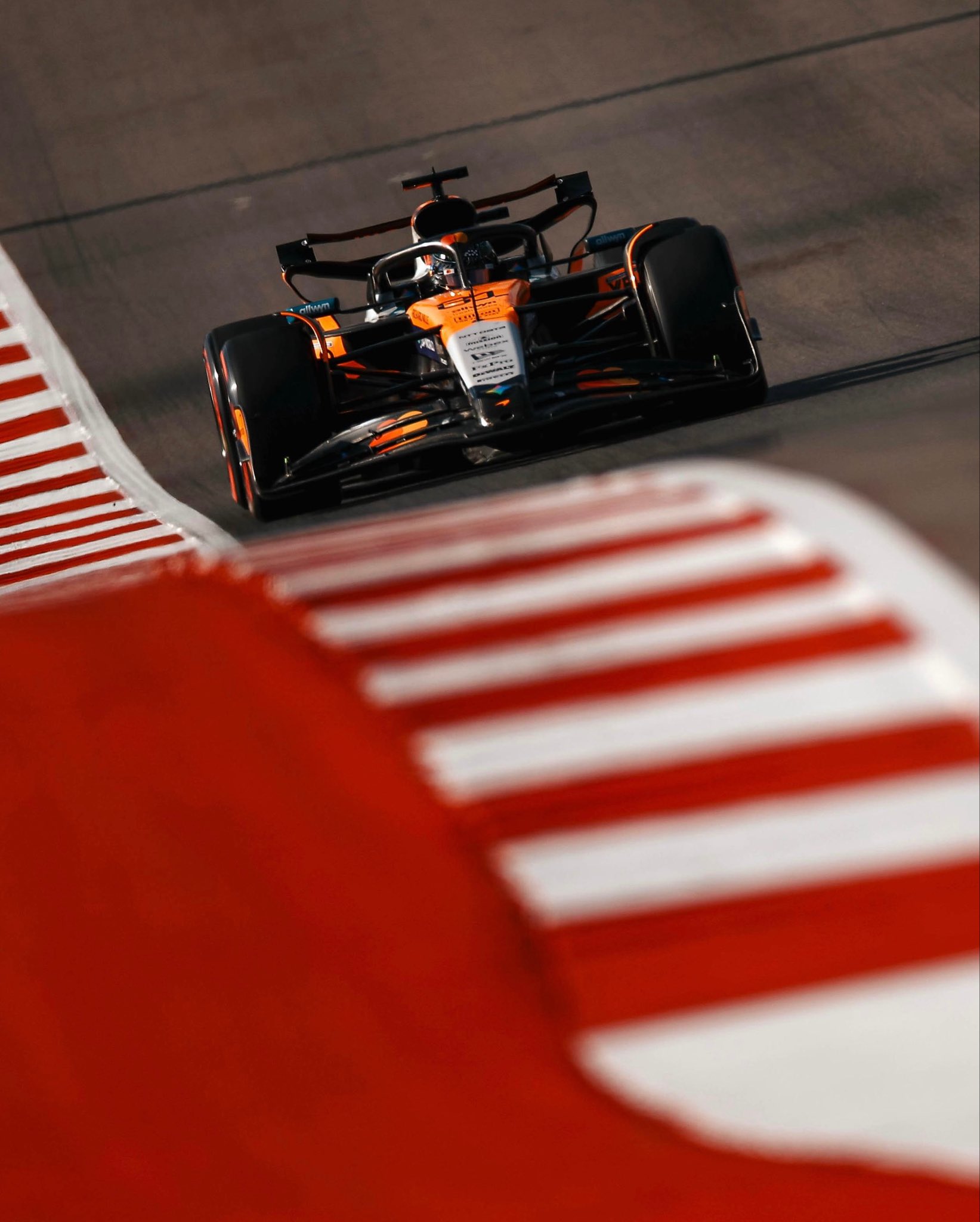

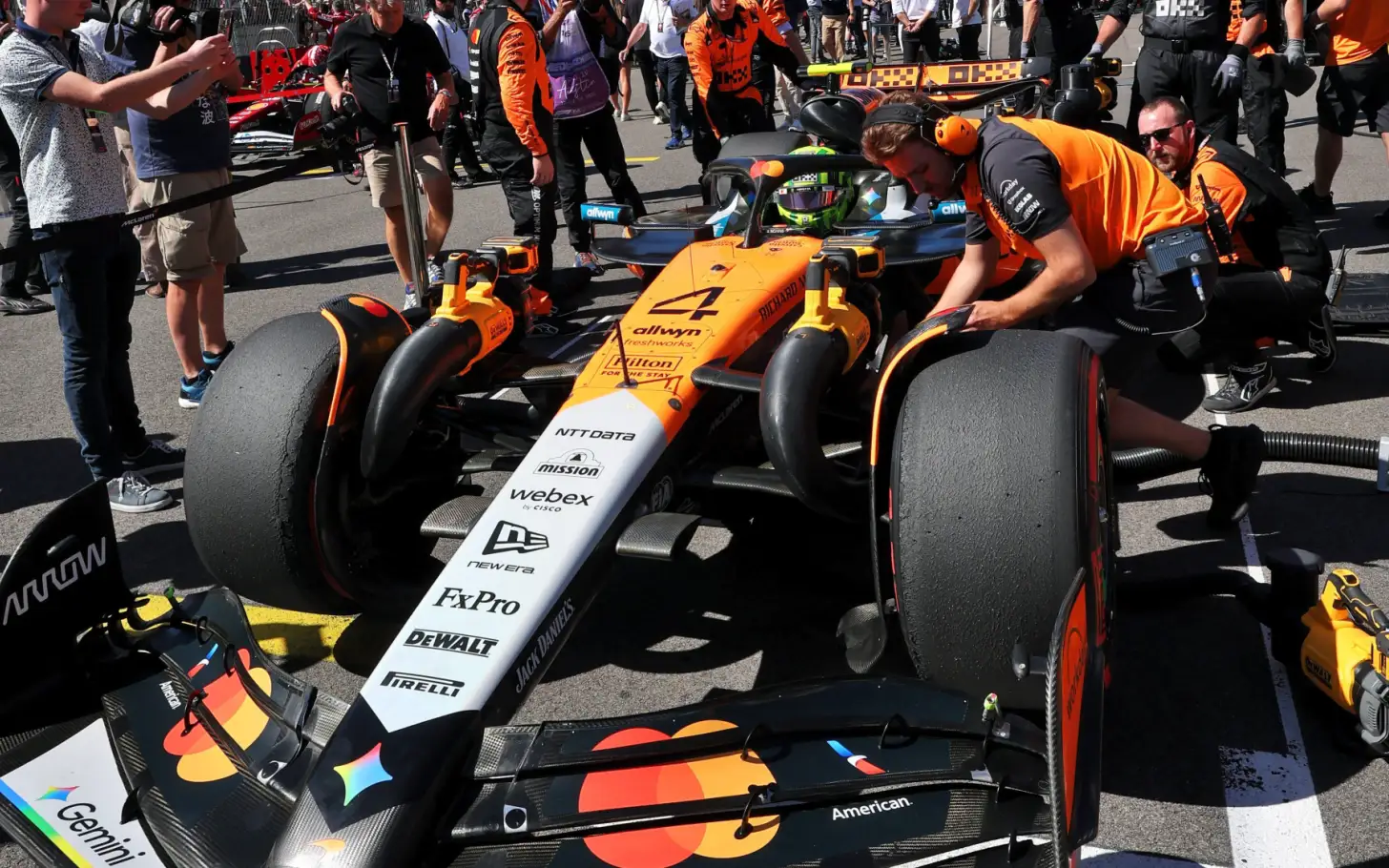

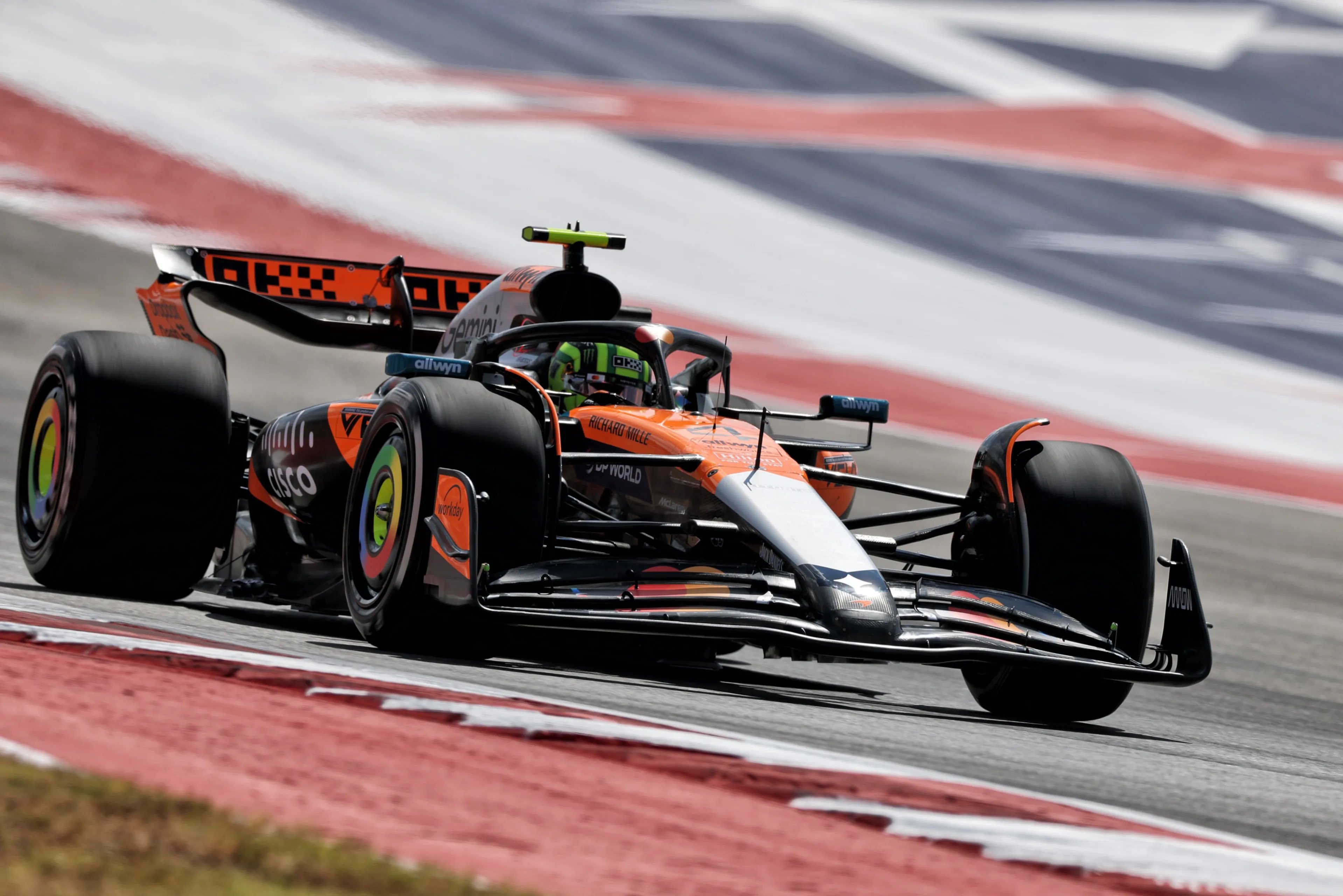

Some post race images with MCL39 in Austin. Various sources.

[De Wet]

Planet F1:

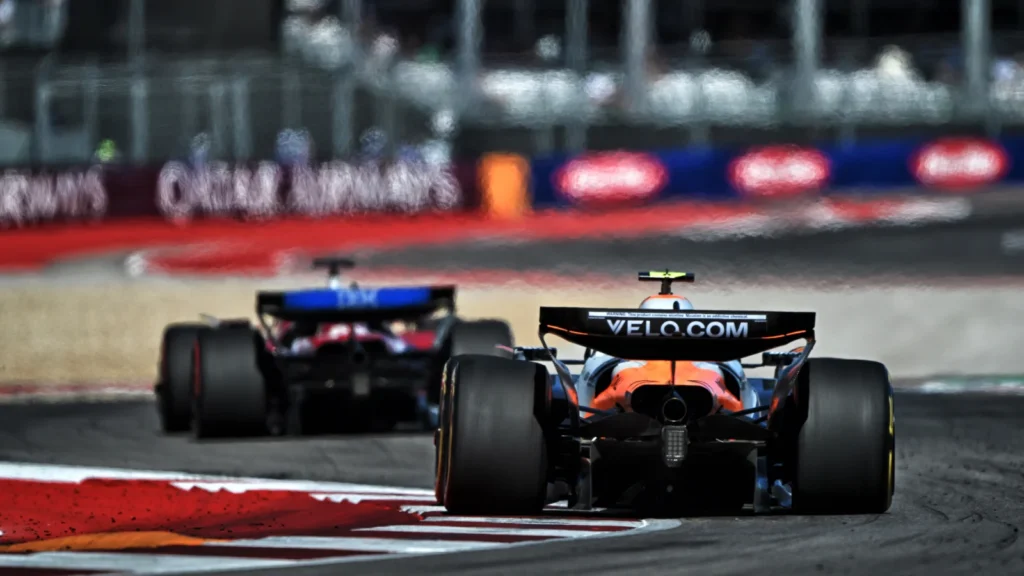

A close up of the rear end on the McLaren MCL39, with the team adopting a single element beam wing.

[SilviuAgo]

RW configuration for Mexico.

[SilviuAgo]

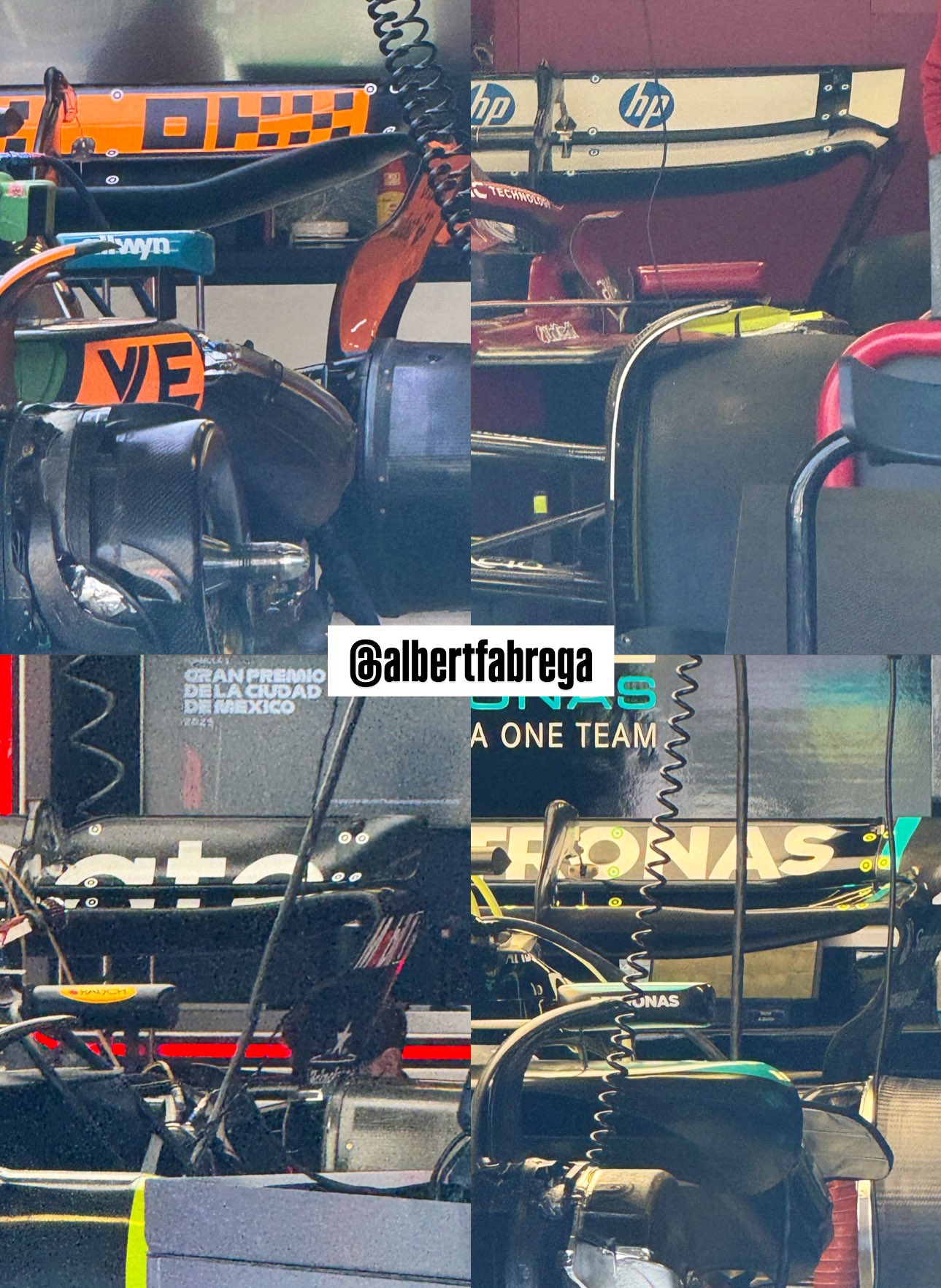

Tks to @carpentiers_f1 we have also the cooling system of MCL39 in Mexico:



And hope not to bee off topic by displaying for comparison other solutions. Maybe this show the cooling efficiency of the McLaren package.

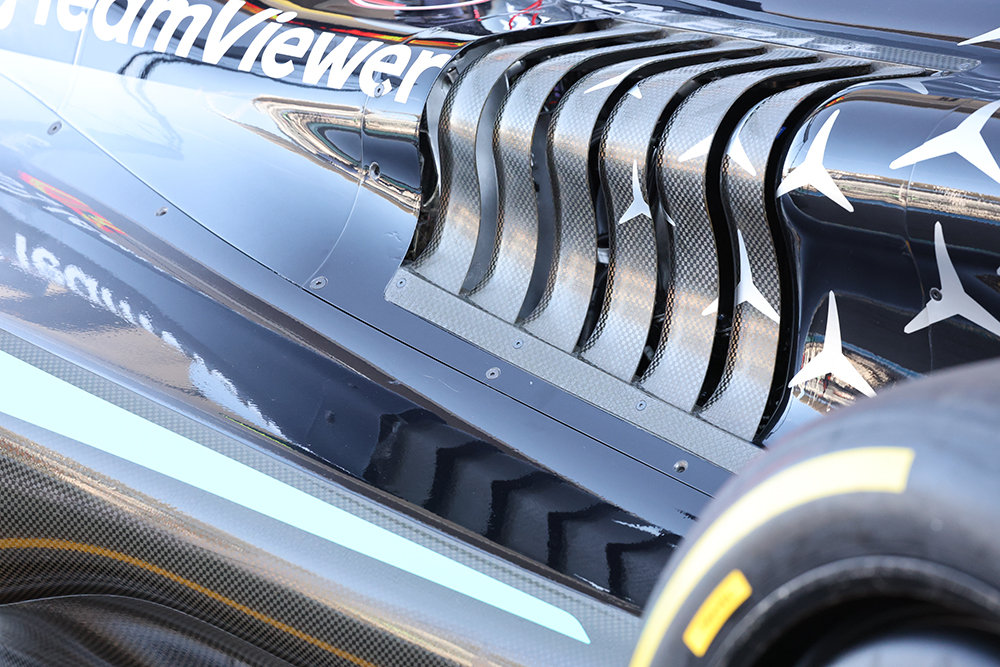

Mercedes:

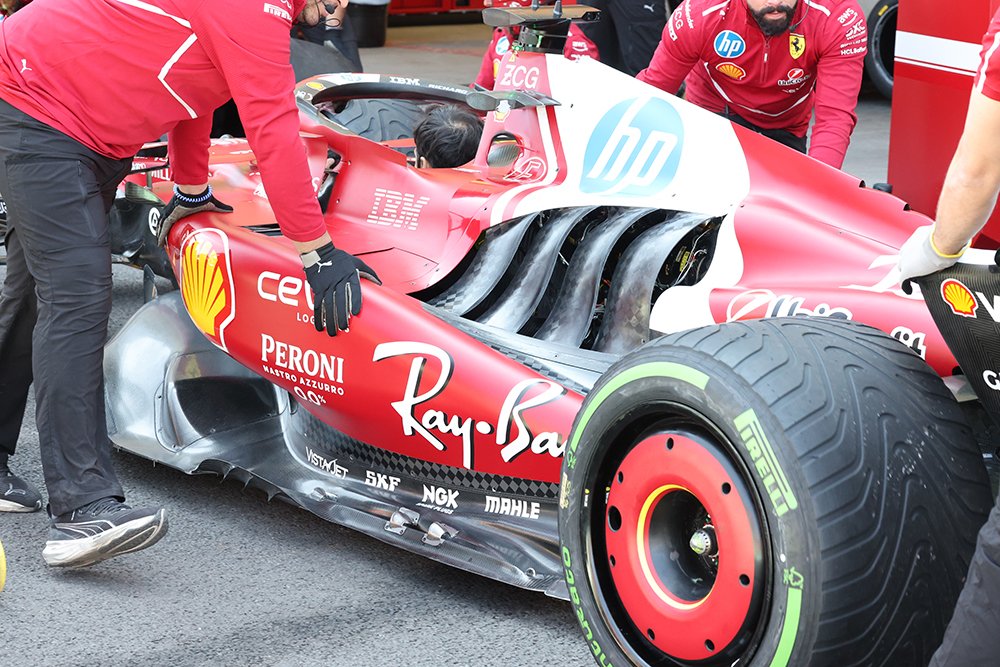

Ferrari:

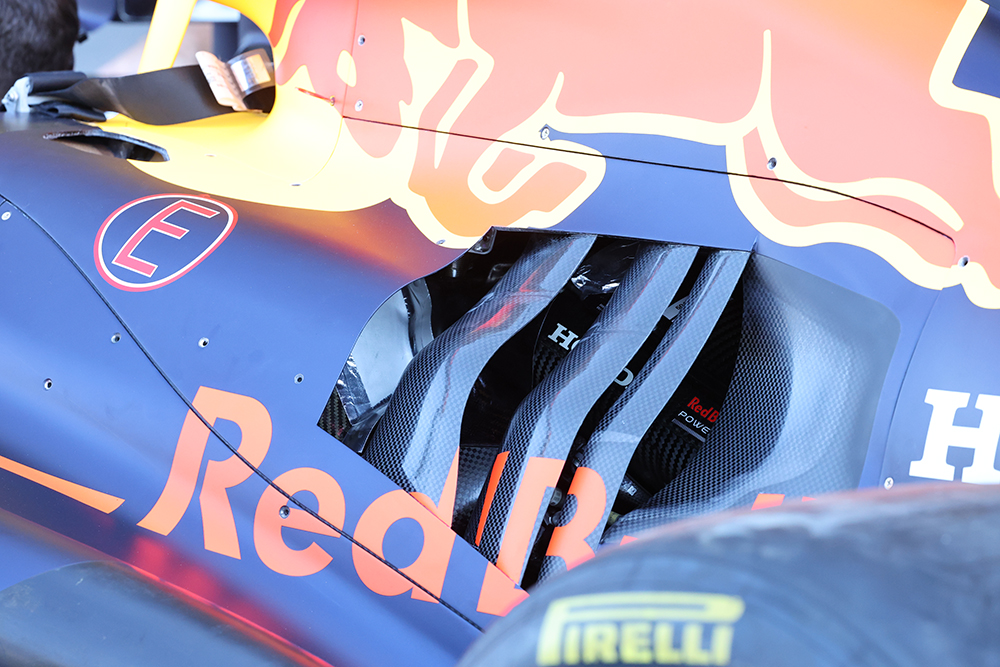

RedBull:

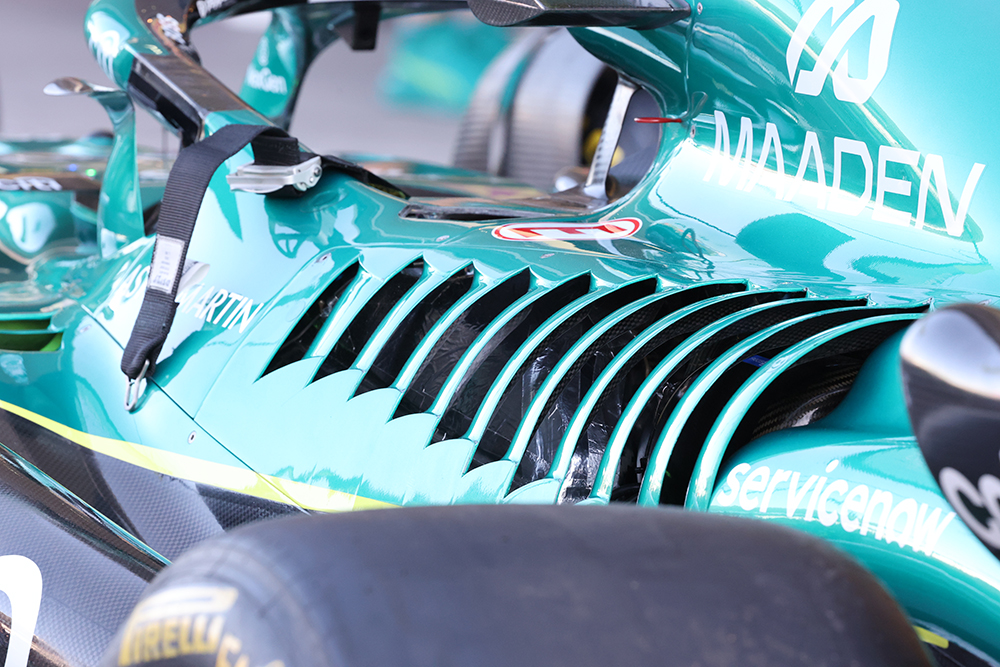

Aston Martin:
