godlameroso wrote:
12 Aug 2018, 05:56
Increase in surface area, potentially less turbulence under the car.
How does it increase surface area and reduce turbulence?

User avatar
godlameroso
309
Joined: 16 Jan 2010, 21:27
Location: Miami FL

Re: Aston Martin Red Bull Racing TAG Heuer RB14

Post

M840TR wrote:
12 Aug 2018, 07:52
godlameroso wrote:
12 Aug 2018, 05:56
Increase in surface area, potentially less turbulence under the car.
How does it increase surface area and reduce turbulence?

Notice the changes. The area near the central section is slightly curved. It adds a small amout of surface area. It also smoothes the air flow along the central section.
Saishū kōnā

jz11
jz11
19
Joined: 14 Sep 2010, 21:32

Re: Aston Martin Red Bull Racing TAG Heuer RB14

Post

if anything, then the shape of the new trailing edge would suggest reduction of the surface area immediately before it, not increase, that slight bow loses out to the straightened sharper bends it previously had in terms of the length of the edge, so it is probably more about the shape of the flow, not the surface area

User avatar
godlameroso
309
Joined: 16 Jan 2010, 21:27
Location: Miami FL

Re: Aston Martin Red Bull Racing TAG Heuer RB14

Post

jz11 wrote:
12 Aug 2018, 22:37
if anything, then the shape of the new trailing edge would suggest reduction of the surface area immediately before it, not increase, that slight bow loses out to the straightened sharper bends it previously had in terms of the length of the edge, so it is probably more about the shape of the flow, not the surface area
Fine if you only look at the trailing edge, but a diffuser is more than just a trailing edge.
Saishū kōnā

M840TR
M840TR
315
Joined: 13 Apr 2018, 21:04

Re: Aston Martin Red Bull Racing TAG Heuer RB14

Post

godlameroso wrote:
12 Aug 2018, 13:28
M840TR wrote:
12 Aug 2018, 07:52
godlameroso wrote:
12 Aug 2018, 05:56
Increase in surface area, potentially less turbulence under the car.
How does it increase surface area and reduce turbulence?
https://pbs.twimg.com/media/DgSPneJX0AAOJmm.jpg:large

Notice the changes. The area near the central section is slightly curved. It adds a small amout of surface area. It also smoothes the air flow along the central section.
You're right; there's more surface area in the central section. And it seems the trade off with the trailing edge is minuscule. They added tiny vortex generating fins underneath too.

Yurasyk
Yurasyk
15
Joined: 31 Jan 2013, 20:39

Re: Aston Martin Red Bull Racing TAG Heuer RB14

Post

M840TR wrote:
13 Aug 2018, 01:26
They added tiny vortex generating fins underneath too.
Those vortex generators have been there all the time. They are not visible above simply due to a different view angle.

User avatar
carisi2k
28
Joined: 15 Oct 2014, 23:26

Re: Aston Martin Red Bull Racing TAG Heuer RB14

Post

Here is a question. How are those slots and gaps even legal. I know that just about every car has them but shouldn't they be illegal under the double diffuser rule?

User avatar
turbof1
Moderator
Joined: 19 Jul 2012, 21:36
Location: MountDoom CFD Matrix

Re: Aston Martin Red Bull Racing TAG Heuer RB14

Post

carisi2k wrote:
13 Aug 2018, 07:05
Here is a question. How are those slots and gaps even legal. I know that just about every car has them but shouldn't they be illegal under the double diffuser rule?
The double diffuser rule forbids holes in the floor. Gurney tabs are perfectly allowed and have been around for I think a decade or so.
#AeroFrodo

Just_a_fan
Just_a_fan
593
Joined: 31 Jan 2010, 20:37

Re: Aston Martin Red Bull Racing TAG Heuer RB14

Post

The double diffuser made use of a wording loop hole regarding the joining of the reference plane to the step plane. This loop hole has been removed.

The slotted gurney flaps on the top of the diffuser are in a space allowed by the rules. The top of the diffuser is 175mm above the reference plane and there must be no bodywork above 200mm above the reference plane. These flaps sit in the 25mm "gap".
If you are more fortunate than others, build a larger table not a taller fence.

User avatar
F1NAC
169
Joined: 31 Mar 2013, 22:35

Re: Aston Martin Red Bull Racing TAG Heuer RB14

Post

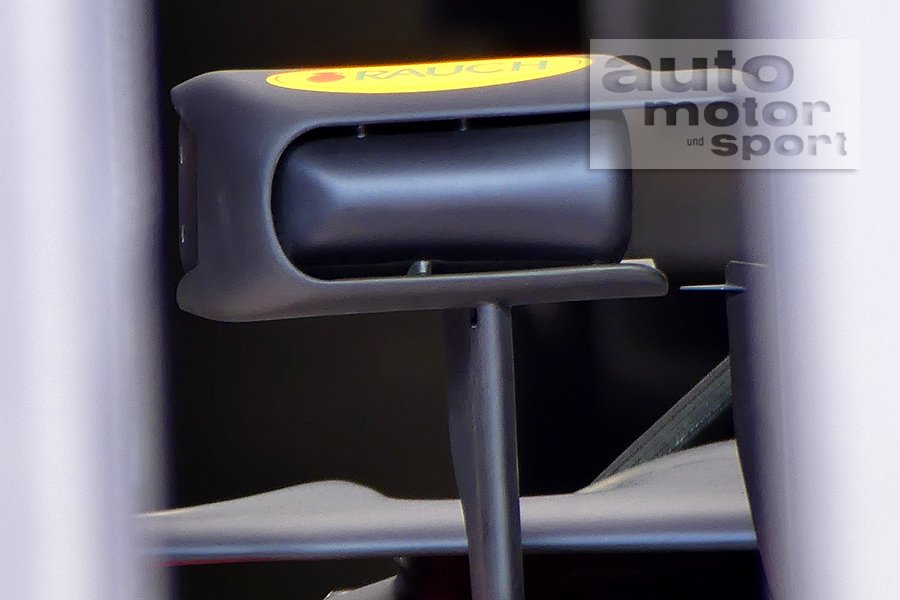

Ferrari style mirrors, but it seems they just added additional housing around mirror that simulates Ferrari's set up.


User avatar
MtthsMlw
1036
Joined: 12 Jul 2017, 18:38
Location: Germany

Re: Aston Martin Red Bull Racing TAG Heuer RB14

Post

Great details 8)

User avatar
gandharva
252
Joined: 06 Feb 2012, 15:19
Location: Munich

Re: Aston Martin Red Bull Racing TAG Heuer RB14

Post

F1NAC wrote:
22 Aug 2018, 18:03
Ferrari style mirrors, but it seems they just added additional housing around mirror that simulates Ferrari's set up.

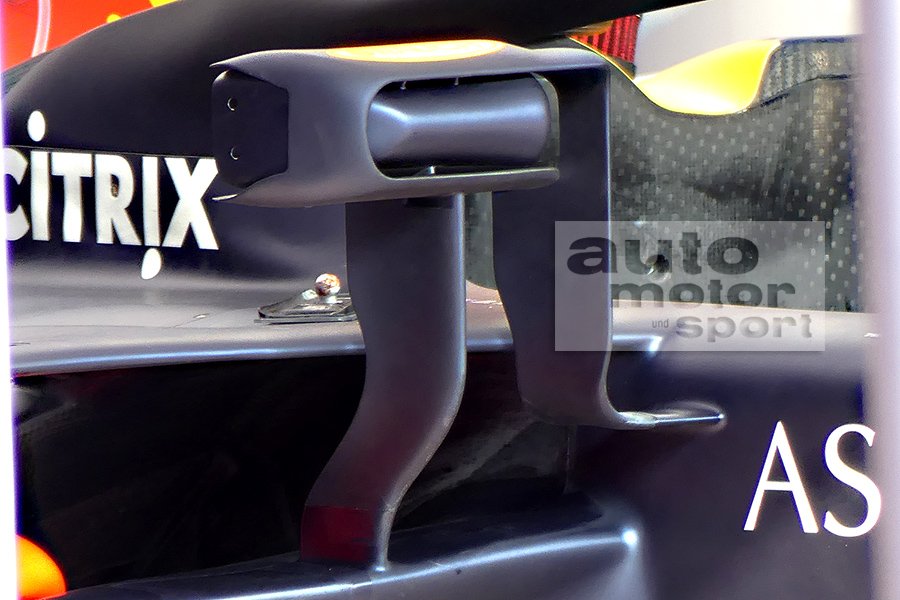

https://pbs.twimg.com/media/DlNvXFEX4AIqwQG.jpg
I absolutely love this overly complex cooling air inlet. Because thats what the whole thing is meant to do. Now it also adds an improved rearwing inflow. Science - --- yeah! If it works we may see some new rearwing designs in the second half.

User avatar
dren
226
Joined: 03 Mar 2010, 14:14

Re: Aston Martin Red Bull Racing TAG Heuer RB14

Post

I don't think it's a cooling air inlet.
Honda!

roon
roon
412
Joined: 17 Dec 2016, 19:04

Re: Aston Martin Red Bull Racing TAG Heuer RB14

Post

Always with the next level stuff, this team. Put a Merc or Ferrari engine in this chassis; we all know what the answer would be. When they aren't innovating something themselves, they're taking someone else's concept, and showing them what it will look like in two years...

dren wrote:
22 Aug 2018, 20:43
I don't think it's a cooling air inlet.
I think he's talking about the radiator inlet in that photo, its shape, how it interacts with the mirror pylons. Then making a separate point about how the mirror will interact with the rear wing.

The slot on the pylon, though. Something going on there.

PhillipM
PhillipM
386
Joined: 16 May 2011, 15:18
Location: Over the road from Boothy...

Re: Aston Martin Red Bull Racing TAG Heuer RB14

Post

Looks like they've just made the very last part of it twin element - perhaps the fairing was showing some flow seperation where the pylon joined without it.
