Alpine A522

A place to discuss the characteristics of the cars in Formula One, both current as well as historical. Laptimes, driver worshipping and team chatter do not belong here.
Aatork
Aatork
0
Joined: 02 Jul 2022, 14:03

Re: Alpine A522

Post

Alonso Fan wrote:
02 Jul 2022, 13:52
Redragon wrote:
02 Jul 2022, 13:01
Alonso Fan wrote:
02 Jul 2022, 12:58



You misunderstood this one. I appreciate English may not be your first language so let me explain. The term 'I stand corrected' essentially means 'you're right'. In other words, @hollus is admitting he has been corrected by you
Ok misunderstood, sorry for that, something new learned, but yes my intentions as said was just to draw attention to that front wing in case of any changes, etc....
No worries, thanks for pointing it out. Both cars in the pits quite a lot this session. Ted reported new bodywork was taken back to factory for inspection overnight because of cracking
It was from Ocon's car. Other than that, there's no much to be worried, the rest of parts are ok.
About sitting in pits, probably reviewing data and doing setups changes. Alpine updates are a bit tricky to make work at it's best.

User avatar
Goblin42
57
Joined: 06 May 2022, 14:52
Location: LA

Re: Alpine A522

Post

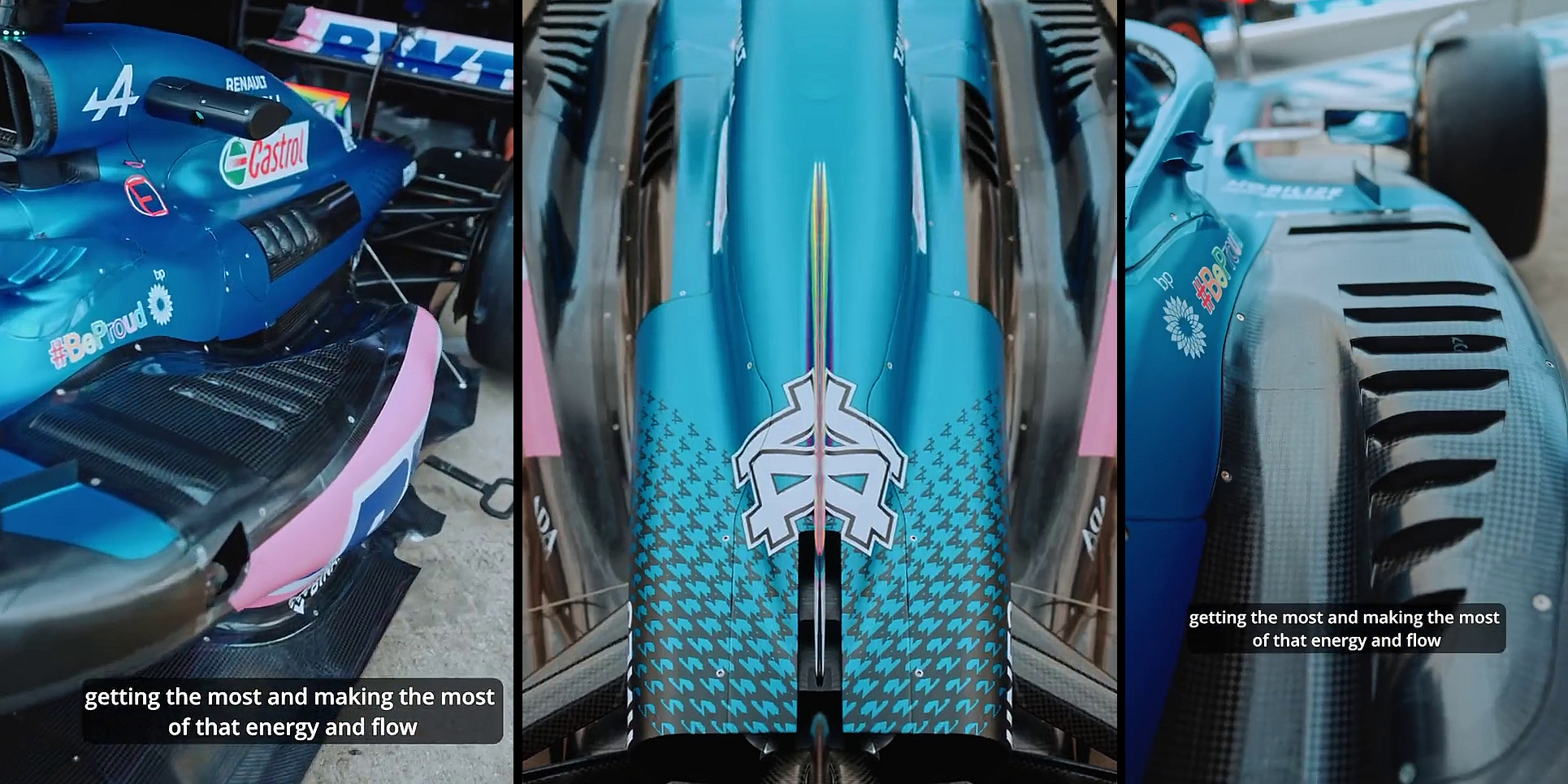

Top view of the Alpine from the Pitlane


User avatar
Blackout
1566
Joined: 09 Feb 2010, 04:12

Re: Alpine A522

Post


User avatar
Blackout
1566
Joined: 09 Feb 2010, 04:12

Re: Alpine A522

Post

Silverstone / Barcelone

User avatar
Blackout
1566
Joined: 09 Feb 2010, 04:12

Re: Alpine A522

Post

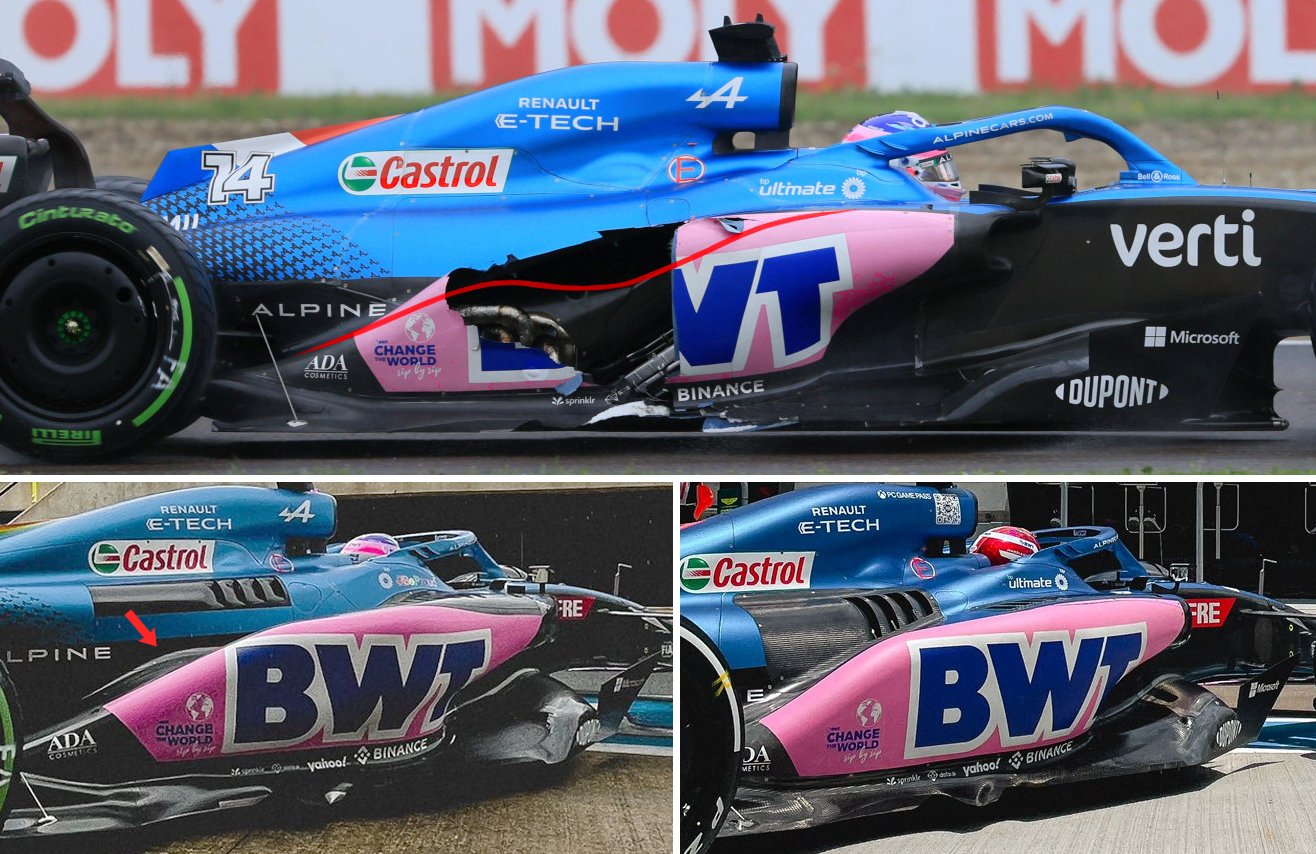

Is that elevation (red ↑) 100% aerodynamic, or is 'just' avoiding the exhaust manifold...
IMO it's a bit of both. I guess the elevation will invite air to accelerate above it, lowering the pressure there, which will attract more air into the valley & toward the rear
PlanetF1 /Alpine F1
Last edited by Blackout on 04 Jul 2022, 16:48, edited 1 time in total.

User avatar
Blackout
1566
Joined: 09 Feb 2010, 04:12

Re: Alpine A522

Post



User avatar
diffuser
236
Joined: 07 Sep 2012, 13:55
Location: Montreal

Re: Alpine A522

Post

Blackout wrote:
04 Jul 2022, 16:26
Is that elevation (red ↑) 100% aerodynamic, or is 'just' avoiding the exhaust manifold...
IMO it's a bit of both. I guess the elevation will invite air to accelerate above it, lowering the pressure there, which will attract more air into the valley & toward the rear
PlanetF1 /Alpine F1
https://pbs.twimg.com/media/FWp0OdtXgAA ... name=large
If it wasn't aero, then why would the dip before it? It's most definately aero.

Aatork
Aatork
0
Joined: 02 Jul 2022, 14:03

Re: Alpine A522

Post

Blackout wrote:
04 Jul 2022, 16:26
Funny enough, I've always had the impression since pre season that a day teams would start sinking in their sidepods in that same fashion Alpine did. Just seemed pointless having that extra unused area with the radiator not consuming that whole area. And there's aero gains, certainly. Now, I wonder how that line of cold air going down that section reacts to the hot air coming out of the radiator gills.
Last edited by Aatork on 04 Jul 2022, 22:41, edited 1 time in total.

User avatar
RedNEO
30
Joined: 09 Jul 2016, 12:58

Re: Alpine A522

Post

It seems Fernando’s luck was part of the upgrades 😉

User avatar
Blackout
1566
Joined: 09 Feb 2010, 04:12

Re: Alpine A522

Post

RedNEO wrote:
07 Jul 2022, 05:08
It seems Fernando’s luck was part of the upgrades 😉
No they made a swap with Ocon's car
"We now know that it was an electrical malfunction in the high-pressure fuel pump" Szafnauer. http://motorsport.nextgen-auto.com

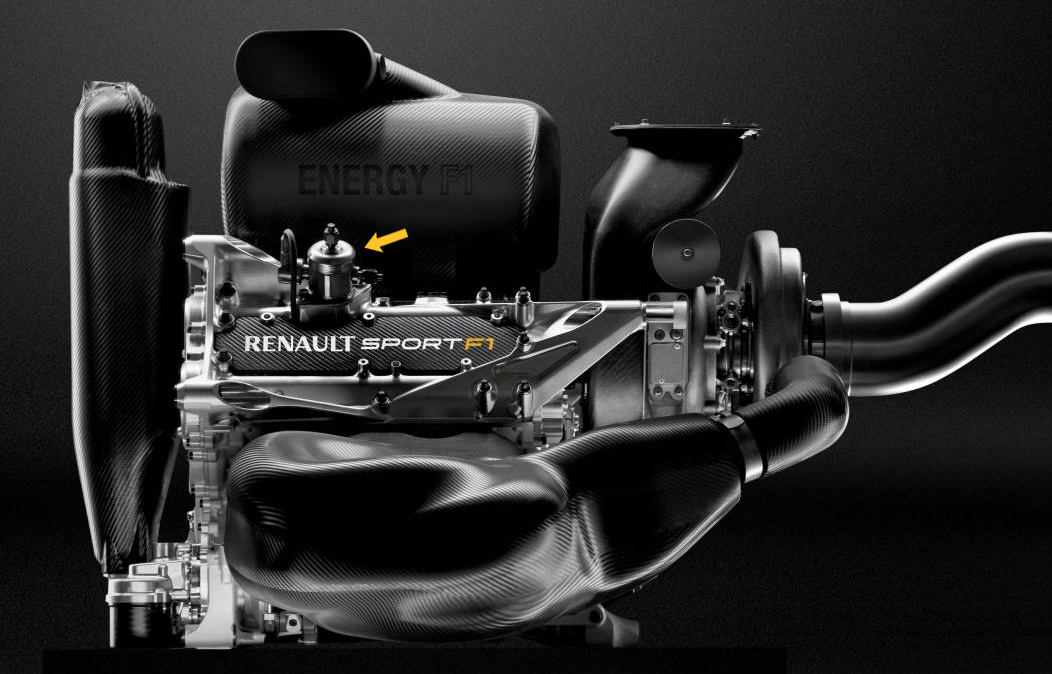

That part is standardised since '22 though (yellow arrow on the old show-engine).
It's outside the seal perimeter so it can be changed without penalty.
Last edited by Blackout on 07 Jul 2022, 15:04, edited 1 time in total.

User avatar
Blackout
1566
Joined: 09 Feb 2010, 04:12

Re: Alpine A522

Post

Is this part pushed inboard, or am I seeing things?
AMuS

AR3-GP
AR3-GP
365
Joined: 06 Jul 2021, 01:22

Re: Alpine A522

Post

That looks a lot like the RB rear wing.
A lion must kill its prey.

User avatar
organic
1055
Joined: 08 Jan 2022, 02:24
Location: Cambridge, UK

Re: Alpine A522

Post


User avatar
diffuser
236
Joined: 07 Sep 2012, 13:55
Location: Montreal

Re: Alpine A522

Post

Blackout wrote:
07 Jul 2022, 15:04
Is this part pushed inboard, or am I seeing things?
AMuS
https://pbs.twimg.com/media/FXEGf7cXoAE ... ame=medium
You're seeing things cause of the coiled cable sitting in front. It's convex not concave. That is the wing with the larger opening on the edges, cutout endplates above and behind the wing where it terminates with Spock ears.

User avatar
Blackout
1566
Joined: 09 Feb 2010, 04:12

Re: Alpine A522

Post

Indeed. It's normal
