Re: Mercedes AMG F1 W04

Post

thomin wrote:I have a question regarding the DRD. It sounds to me a lot like a passive F-Duct. Mercedes was running one in 2010, so I wonder whether that could give them an edge here. I seem to remember Brawn saying that it was a mistake to put so much effort into the passive F-Duct, because it took them the whole season to make it work properly. That could be beneficial now however.

AFAIK, the passive F-Duct was all within the rear wing of the car, so there is a fundamental difference to the DRD. But I would imagine that the hardest part is to tune the device so that it's activated at precisely the point you need it. But the same problem applies to the passive F-Duct. So could Mercedes' experience with the passive F-Duct help them now, or is this so different that they'll have to start from scratch again? Because if they can't fall back on their old data, I really wonder if this DRD is worth the effort as nobody but Lotus seems to think it's a path worth exploring...
Sory but your'e wrong. Mercedes couldn't find performances in other areas, specialy when car was hard on tires, also it lacked aero devolopment, so they tried to make effort in that particular area. In other hand Lotus had performances in some hand, and they tried to find gain in that area, specialy when they knowed how much they have lost raw power from engine after coanda exaust. It was worth the risk for them specialy when they knowed DDRS is banned next season. I dont know if other teams decide to use such system specialy when is hard to tune the device, but if Lotus succeeded it will gain them nice advantage. Red Bull tried similar concept of DRD, but it looked similar how DDRS worked. You know Red Bull started winning races and win championship after they maked DDRS, so i think it's worth the effort.

User avatar
atanatizante
125
Joined: 10 Mar 2011, 15:33

Re: Mercedes AMG F1 W04

Post



Also new seamless rear break ducts in addition to the front ones ...
And there is a diagonal slit on their RW endplates ... is there any resemblance with the vertical ones on F138 RW endplates?
"I don`t have all the answers. Try Google!"
Jesus

mantikos
mantikos
35
Joined: 02 Mar 2011, 17:35

Re: Mercedes AMG F1 W04

Post

atanatizante wrote:Also new seamless rear break ducts in addition to the front ones ...
And there is a diagonal slit on their RW endplates ... is there any resemblance with the vertical ones on F138 RW endplates?
That's just tape not a slot

User avatar
Forza
238
Joined: 08 Sep 2010, 20:55

Re: Mercedes AMG F1 W04

Post

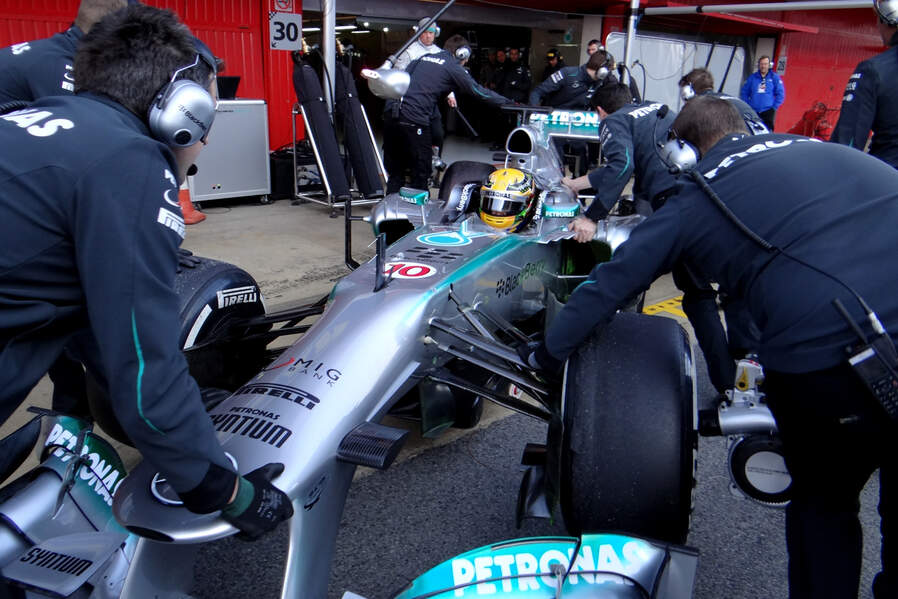

F1 test - Barcelona T02 - day 2

Flow vis run
Last edited by Forza on 20 Feb 2013, 11:30, edited 1 time in total.

ak21_rao
ak21_rao
0
Joined: 26 Jul 2008, 09:59
Location: India

Re: Mercedes AMG F1 W04

Post

I am shocked to see them running conventional exhausts today. They don't seem to be getting enough advantage from the semi conda setup.Image

MercedesAMG
MercedesAMG
4
Joined: 05 Feb 2013, 14:20
Location: Germany

Re: Mercedes AMG F1 W04

Post

ak21_rao wrote:I am shocked to see them running conventional exhausts today. They don't seem to be getting enough advantage from the semi conda setup.http://www.f1fanatic.co.uk/2013/02/20/2 ... /_mg_8749/
No, they did only run the the conventional one to make a comparison of the temperature, especially for the tire deg.

kris
kris
0
Joined: 09 Mar 2011, 11:31

Re: Mercedes AMG F1 W04

Post

ak21_rao wrote:I am shocked to see them running conventional exhausts today. They don't seem to be getting enough advantage from the semi conda setup.http://www.f1fanatic.co.uk/2013/02/20/2 ... /_mg_8749/
They could just be evaluating flow around the side pods..The use of 2012 exhausts would help reduce the exhaust gases effect on the flow as they were effectively blowing the beam wing..Could help air flow comparisons in both the exhaust versions.

User avatar
andrewf1
15
Joined: 01 Sep 2012, 15:22

Re: Mercedes AMG F1 W04

Post

ak21_rao wrote:I am shocked to see them running conventional exhausts today. They don't seem to be getting enough advantage from the semi conda setup.
they specifically said they will be using the old-exhausts at one point in time to have them as a reference and baseline for comparison with the Coanda exhaust. calm down

Mika1
Mika1
3
Joined: 16 May 2012, 20:17

Re: Mercedes AMG F1 W04

Post

andrewf1 wrote:
ak21_rao wrote:I am shocked to see them running conventional exhausts today. They don't seem to be getting enough advantage from the semi conda setup.
they specifically said they will be using the old-exhausts at one point in time to have them as a reference and baseline for comparison with the Coanda exhaust. calm down
Correct, they will use the 2013 version later this day. It's just to compare, nothing more.
The boss follows me on twitter.

User avatar
Forza
238
Joined: 08 Sep 2010, 20:55

Re: Mercedes AMG F1 W04

Post


ForMuLaOne
ForMuLaOne
4
Joined: 19 Feb 2011, 02:01

Re: Mercedes AMG F1 W04

Post

I believe that Merc will come up with a williams style solution. But they cover the exhaust ramp IN FRONT of the exhaust hole. You cann se this in the picture above, which seems to be a hybrid version of the conventional an coanda version. So they install a flow conditioner for the exhaust which should be allowed as it does not effect the direction of the exhaust gases AFTER they exit the pipes.

elf341
elf341
5
Joined: 10 Aug 2011, 19:31

Re: Mercedes AMG F1 W04

Post

The flow-vis is incredible news, and is the first that I can remember Mercedes ever using.
First pitot-sensors and now flow-vis. These are good signs that this team is moving forwards.

zioture
zioture
563
Joined: 12 Feb 2013, 12:46
Location: Italy

Re: Mercedes AMG F1 W04

Post

I'm not convinced you that it discharges mercedes is an old configuration.
Last edited by zioture on 20 Feb 2013, 14:04, edited 1 time in total.

User avatar
Thunder
Moderator
Joined: 06 Feb 2013, 09:50
Location: Germany

Re: Mercedes AMG F1 W04

Post

Mercedes switched back to the Coanda Exhaust already.
turbof1 wrote: YOU SHALL NOT......STALLLLL!!!
#aerogollum
