Renault F1 R.S. 20

A place to discuss the characteristics of the cars in Formula One, both current as well as historical. Laptimes, driver worshipping and team chatter do not belong here.
User avatar
Blackout
1566
Joined: 09 Feb 2010, 04:12

Re: Renault F1 R.S. 20

Post

First pic that shows the width of the centerline cooling rad... it's wide...
(pic might be from 2019, but RS20, RS19 and RS18 have the same layout)
https://uploads.tapatalk-cdn.com/202002 ... 4a2954.jpg

User avatar
Blackout
1566
Joined: 09 Feb 2010, 04:12

Re: Renault F1 R.S. 20

Post


User avatar
Morteza
2308
Joined: 10 Feb 2010, 18:23
Location: Bushehr, Iran

Re: Renault F1 R.S. 20

Post

New bargeboards


New front wing top flaps for Renault to improve outwash. 3rd.element connected to main plane

New sideplate
Last edited by Morteza on 03 Jul 2020, 20:17, edited 3 times in total.
"A fool thinks himself to be wise, but a wise man knows himself to be a fool."~William Shakespeare

User avatar
MtthsMlw
1036
Joined: 12 Jul 2017, 18:38
Location: Germany

Re: Renault F1 R.S. 20

Post

Interesting design of that third FW flap.

Edit:
Well not really...
Last edited by MtthsMlw on 02 Jul 2020, 16:34, edited 1 time in total.

stan_french
stan_french
1
Joined: 02 Jul 2020, 15:58

Re: Renault F1 R.S. 20

Post


Seems like renault also has front wing upgrades, and they're gonna compare.

User avatar
Blackout
1566
Joined: 09 Feb 2010, 04:12

Re: Renault F1 R.S. 20

Post

Indeed. An original treatment for the 'Y250' area. I wonder how that works. They removed one of the tips
Last edited by Blackout on 02 Jul 2020, 16:31, edited 1 time in total.

User avatar
dren
226
Joined: 03 Mar 2010, 14:14

Re: Renault F1 R.S. 20

Post

Blackout wrote:
02 Jul 2020, 16:27
Indeed. An original treatment for the 'Y250' area
Looks like the bar behind it is playing tricks.
Honda!

User avatar
Blackout
1566
Joined: 09 Feb 2010, 04:12

Re: Renault F1 R.S. 20

Post

Indeed :lol:
#-o

User avatar
Blackout
1566
Joined: 09 Feb 2010, 04:12

Re: Renault F1 R.S. 20

Post

https://pbs.twimg.com/media/Eb7ScBHWAAE ... name=large

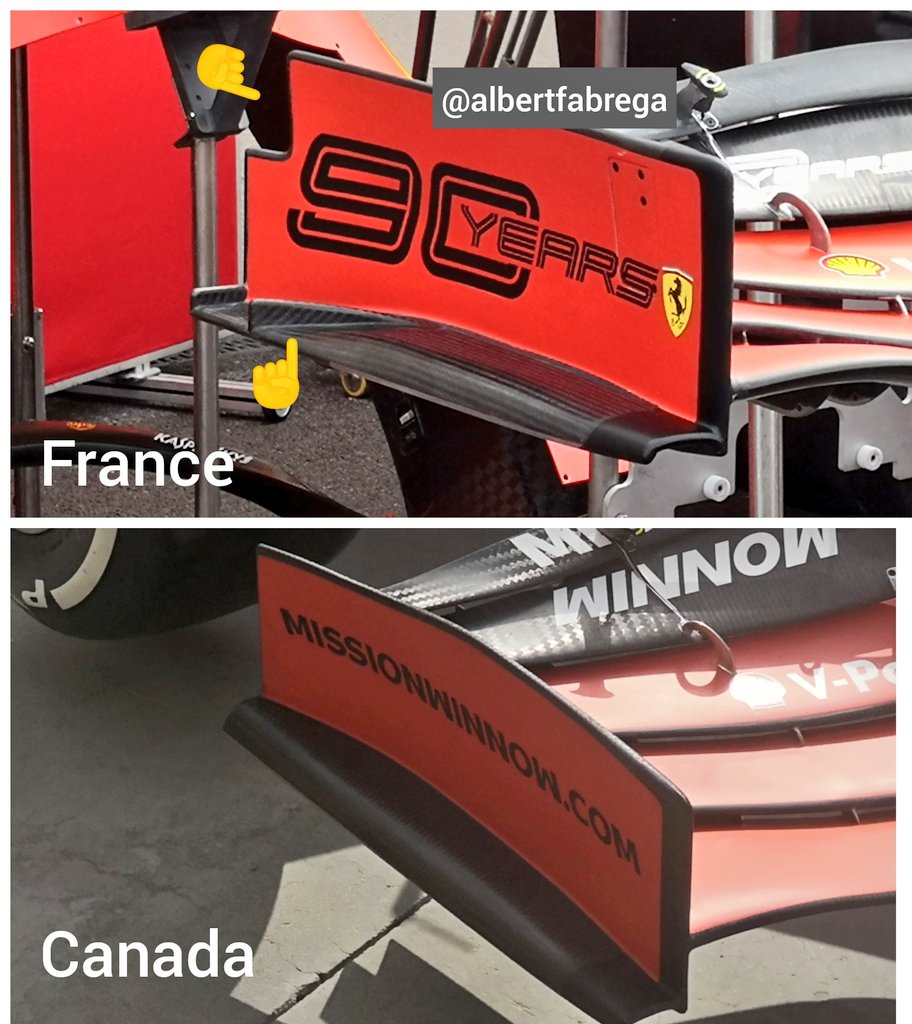

Ferrari took a similar development step with its FW endplate and footplate last year
https://pbs.twimg.com/media/D9fiPx7XkAACLpF.jpg:large

Both teams decided to flatten and to lower the back of the footplate and to give it an outwashy vane near the trailing edge. And they cut the trailing corner of the endplate
Last edited by Blackout on 02 Jul 2020, 18:56, edited 2 times in total.

User avatar
PlatinumZealot
559
Joined: 12 Jun 2008, 03:45

Re: Renault F1 R.S. 20

Post

Enstone were the Kings of this sort of front wing since back in 2010. They took what Brawn GP had and really went crazy. They have been sort of tame in hybrid era though.
🖐️✌️☝️👀👌✍️🐎🏆🙏

Racing Green in 2028

McMika98
McMika98
-24
Joined: 18 Feb 2017, 22:40

Re: Renault F1 R.S. 20

Post

PlatinumZealot wrote:
02 Jul 2020, 18:52
Enstone were the Kings of this sort of front wing since back in 2010. They took what Brawn GP had and really went crazy. They have been sort of tame in hybrid era though.
Tame largely because the man who was at the helm has left and is now the captain of the Flying Benz.

User avatar
Blackout
1566
Joined: 09 Feb 2010, 04:12

Re: Renault F1 R.S. 20

Post


User avatar
djos
113
Joined: 19 May 2006, 06:09
Location: Melbourne, Australia

Re: Renault F1 R.S. 20

Post

Is it My imagination or have Renault smoothed out the transition between the tub and the nose since March?
"In downforce we trust"

User avatar
Blackout
1566
Joined: 09 Feb 2010, 04:12

Re: Renault F1 R.S. 20

Post

It looks the same to me.



The floor leading edge seems to be serrated... And it has more teeth than 2019.

User avatar
Morteza
2308
Joined: 10 Feb 2010, 18:23
Location: Bushehr, Iran

Re: Renault F1 R.S. 20

Post



"A fool thinks himself to be wise, but a wise man knows himself to be a fool."~William Shakespeare
