Ferrari F1-75

A place to discuss the characteristics of the cars in Formula One, both current as well as historical. Laptimes, driver worshipping and team chatter do not belong here.
User avatar
Goblin42
57
Joined: 06 May 2022, 14:52
Location: LA

Re: Ferrari F1-75

Post

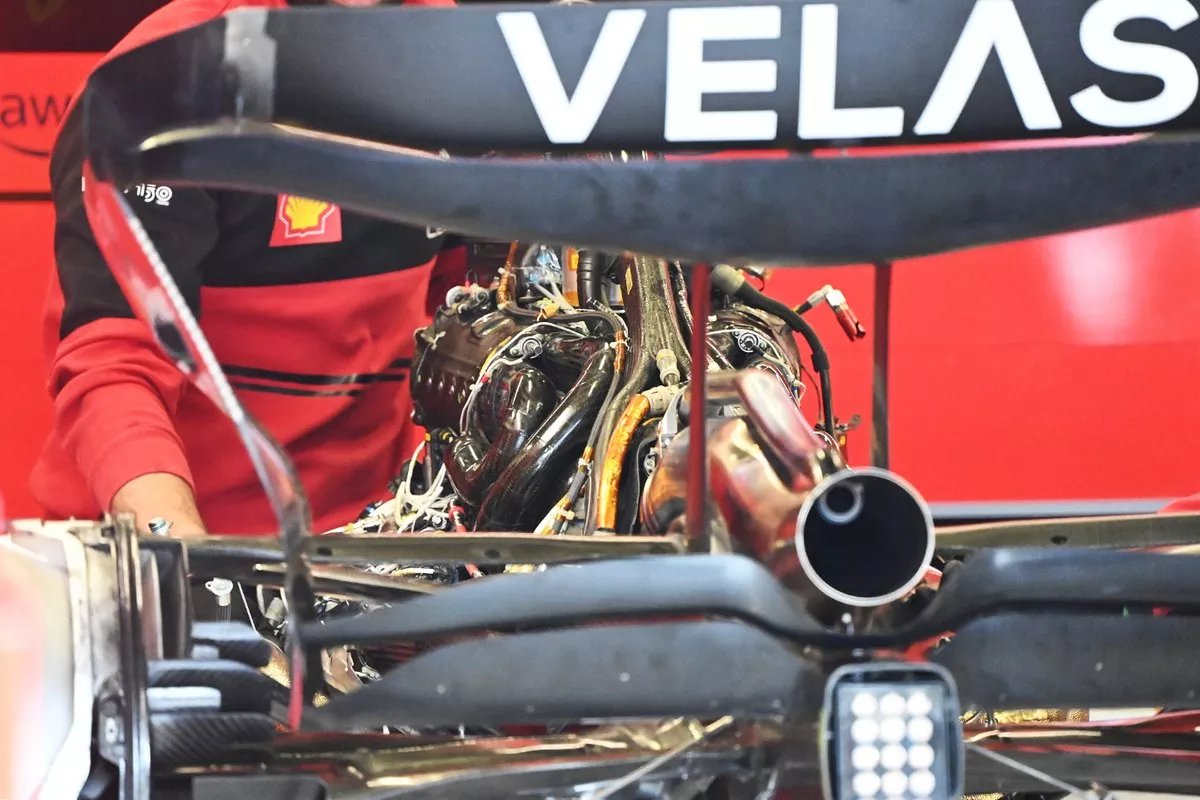

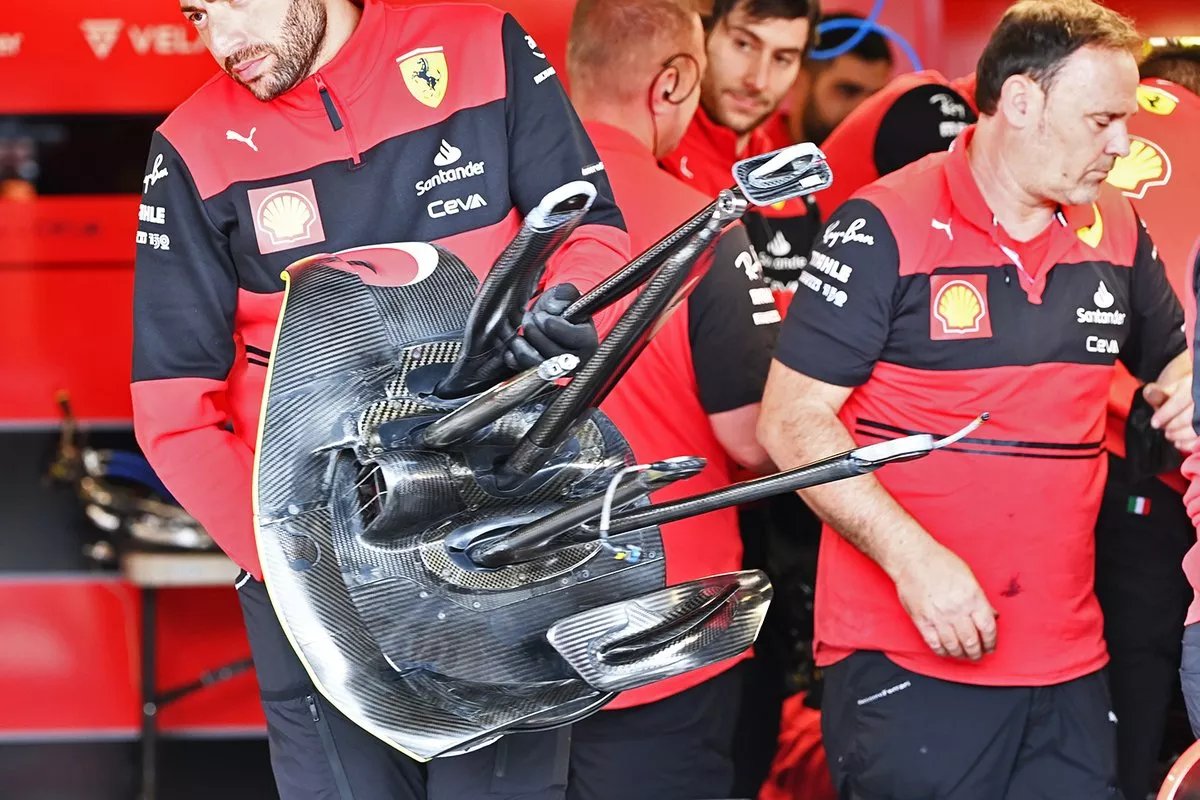

When they changed Carlos sainz's chassis they took the entire car apart and we got to see some good stuff


User avatar
deadhead
52
Joined: 08 Apr 2022, 20:24

Re: Ferrari F1-75

Post

Nice shots! The engine looks so compact...

User avatar
organic
1055
Joined: 08 Jan 2022, 02:24
Location: Cambridge, UK

Re: Ferrari F1-75

Post

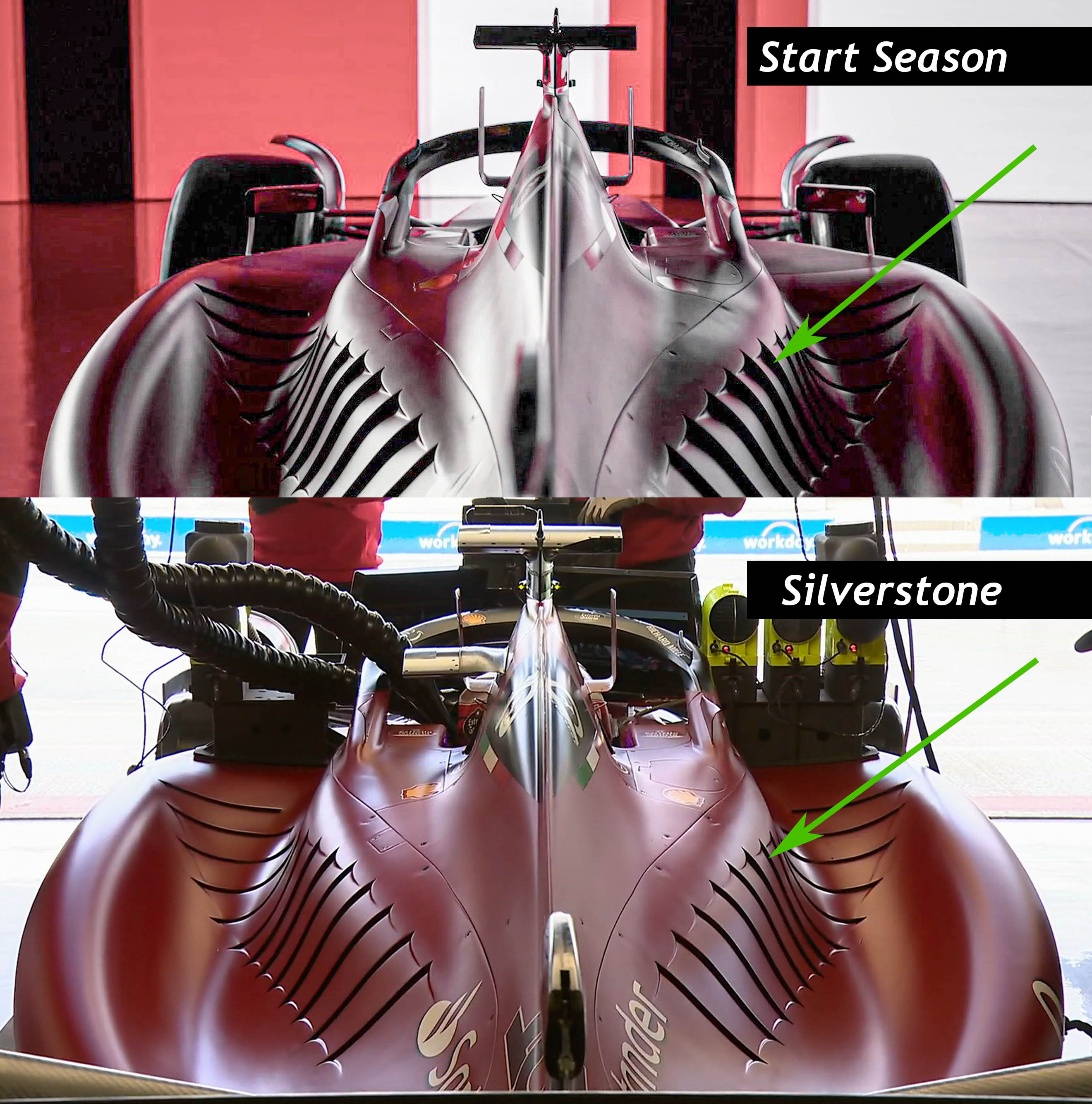

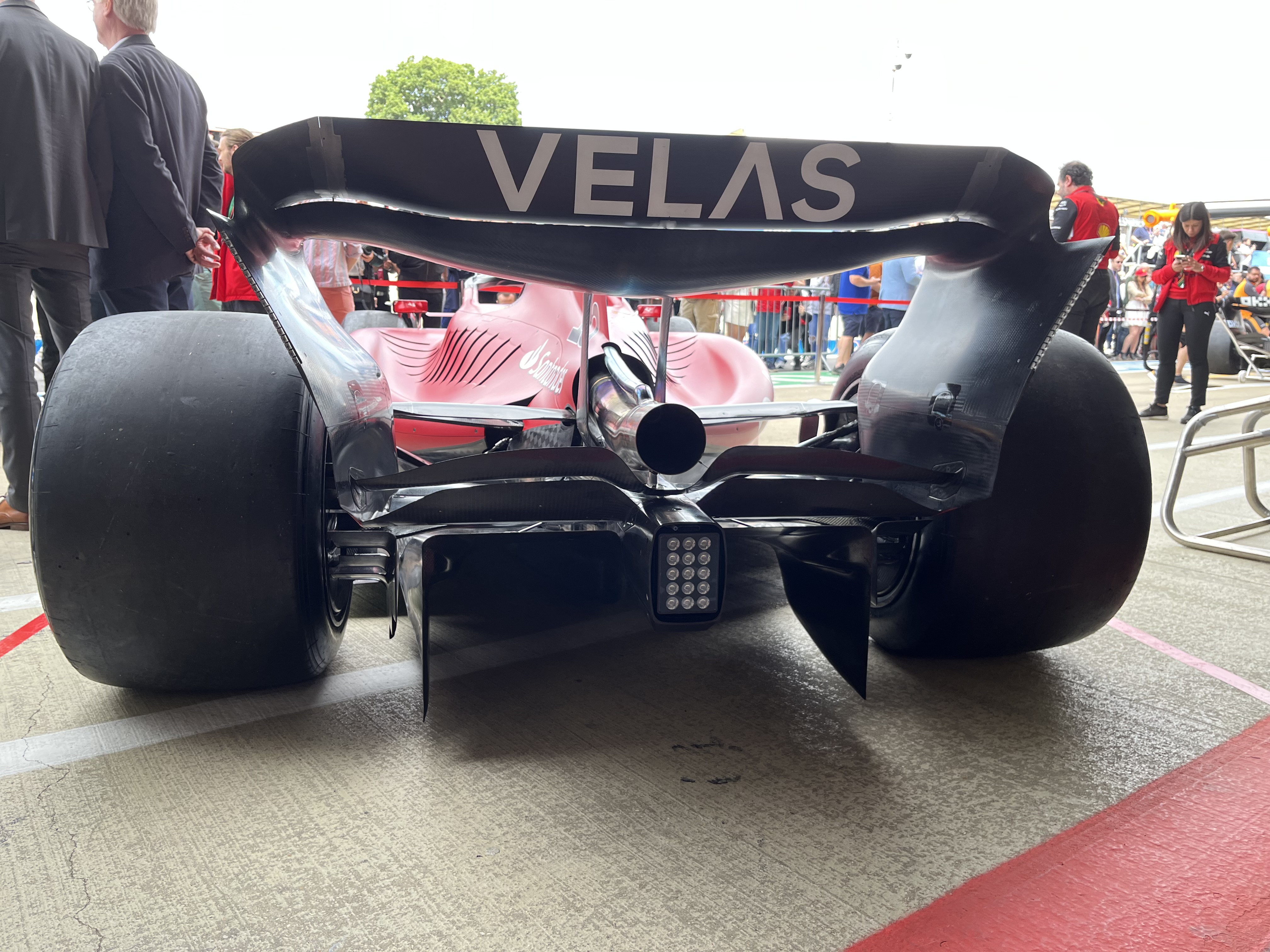

Revised sidepod undercut, engine cover, mirrors (seen already) & rear cooling outlets

Rear cooling outlet change is reportedly for better efficiency and optimized engine cooling

User avatar
gordonthegun
254
Joined: 28 Mar 2019, 23:33
Location: Monza, Italy.

Re: Ferrari F1-75

Post

The vertical mirror holder is now wider:


User avatar
chrstphrln
7
Joined: 10 Apr 2022, 10:27
Location: Germany

Re: Ferrari F1-75

Post

Honestly, I expected more.
Measures against the porpoising, new underbody, something like that.

Okay, let´s see...

User avatar
organic
1055
Joined: 08 Jan 2022, 02:24
Location: Cambridge, UK

Re: Ferrari F1-75

Post


wowgr8
wowgr8
29
Joined: 11 Feb 2020, 20:35

Re: Ferrari F1-75

Post

chrstphrln wrote:
01 Jul 2022, 11:54
Honestly, I expected more.
Measures against the porpoising, new underbody, something like that.

Okay, let´s see...
I suspect the upgrade plans are compromised by 1) the multitude of crashes and incidents Sainz had at the start of the year and
2) the fact that they had to spend money redesigning and producing their rear wing specs to fix the DRS problem.

Xyz22
Xyz22
123
Joined: 16 Feb 2022, 20:05

Re: Ferrari F1-75

Post

wowgr8 wrote:
01 Jul 2022, 14:29
chrstphrln wrote:
01 Jul 2022, 11:54
Honestly, I expected more.
Measures against the porpoising, new underbody, something like that.

Okay, let´s see...
I suspect the upgrade plans are compromised by 1) the multitude of crashes and incidents Sainz had at the start of the year and
2) the fact that they had to spend money redesigning and producing their rear wing specs to fix the DRS problem.
Don't think that is realistic as a reason for lack of upgrades.

LM10
LM10
121
Joined: 07 Mar 2018, 00:07

Re: Ferrari F1-75

Post

wowgr8 wrote:
01 Jul 2022, 14:29
chrstphrln wrote:
01 Jul 2022, 11:54
Honestly, I expected more.
Measures against the porpoising, new underbody, something like that.

Okay, let´s see...
I suspect the upgrade plans are compromised by 1) the multitude of crashes and incidents Sainz had at the start of the year and
2) the fact that they had to spend money redesigning and producing their rear wing specs to fix the DRS problem.
Seconding Xyz22 there. Surely not how you described it.
The crashes cost some money, but not as much as people seem to think. Teams already before the season starts define a certain budget for crashes alone and Ferrari have not had that many expensive crashes. Even a total write off would cost “only” around a million. If any, it would be towards the end of the season a team would start making changes to their upgrade program.

As for the rear wings, you can be sure of Ferrari having planned them way before. All teams have brought different rear wing specs, obviously.

User avatar
F1NAC
169
Joined: 31 Mar 2013, 22:35

Re: Ferrari F1-75

Post

Still no photos of revised sidepod and engine cover?

Xyz22
Xyz22
123
Joined: 16 Feb 2022, 20:05

Re: Ferrari F1-75

Post

New


Old



Source:

Sevach
Sevach
1081
Joined: 07 Jun 2012, 17:00

Re: Ferrari F1-75

Post



Sidepod seems more rounded(and perhaps a little tighter) allowing better airflow on the floor.
Last edited by Sevach on 01 Jul 2022, 17:02, edited 1 time in total.

User avatar
Blackout
1566
Joined: 09 Feb 2010, 04:12

Re: Ferrari F1-75

Post


zioture
zioture
548
Joined: 12 Feb 2013, 12:46
Location: Italy

Re: Ferrari F1-75

Post

the sidepods are the same, new outbursts are not new





Seanspeed
Seanspeed
5
Joined: 20 Feb 2019, 20:12

Re: Ferrari F1-75

Post

Sevach wrote:
01 Jul 2022, 17:01
https://cdn-1.motorsport.com/images/mgl ... -75-1.webp

https://cdn-1.motorsport.com/images/mgl ... -75-1.webp

Sidepod seems more rounded(and perhaps a little tighter) allowing better airflow on the floor.
Not really seeing it at all. Some comparison pictures from back in testing:

https://pbs.twimg.com/media/FNjaYpwWQAA ... name=small

https://pbs.twimg.com/media/FNfl9B6WQAI ... name=large

If there are any changes, they're either incredibly subtle or just in areas we still cant quite see properly yet.
