Re: Ferrari SF-24

Post

The overbite does not make much sense without completely new sidepods.
The overbite comes with more aggressive drop or gullies starting more upstream. Also the narrow inlet for more outwash surface. If Ferrari have the same size inlet, and no sidepod change, then I doubt the overbite will be 2.5 tenths improvement.
For Sure!!

dialtone
dialtone
121
Joined: 25 Feb 2019, 01:31

Re: Ferrari SF-24

Post

ringo wrote:The overbite does not make much sense without completely new sidepods.
The overbite comes with more aggressive drop or gullies starting more upstream. Also the narrow inlet for more outwash surface. If Ferrari have the same size inlet, and no sidepod change, then I doubt the overbite will be 2.5 tenths improvement.
Overbite isn’t 2.5 tenths alone, they are making changes to the floor as well, and there’s probably more than just the sidepod inlet in the sidepod work. 1.5 tenths are from efficiency and 1 tenth is from downforce. The sidepods are more efficiency than other stuff, might even generate some lift.

Again according to the article and what they talked about before, the first iteration of the inverted inlet wasn’t good, they iterated on it and made changes that allowed it to work, so likely the inlet comes with a lot of other stuff.

User avatar
scuderiabrandon
102
Joined: 11 Feb 2023, 08:42

Re: Ferrari SF-24

Post

ringo wrote:
12 Apr 2024, 02:50
The overbite does not make much sense without completely new sidepods.
The overbite comes with more aggressive drop or gullies starting more upstream. Also the narrow inlet for more outwash surface. If Ferrari have the same size inlet, and no sidepod change, then I doubt the overbite will be 2.5 tenths improvement.
The entire upgrade package is said to be worth around 2.5 tenths, which includes a new floor and bodywork. The article made it clear enough.

Sevach
Sevach
1081
Joined: 07 Jun 2012, 17:00

Re: Ferrari SF-24

Post


jambuka
jambuka
28
Joined: 24 Feb 2023, 07:52

Re: Ferrari SF-24

Post

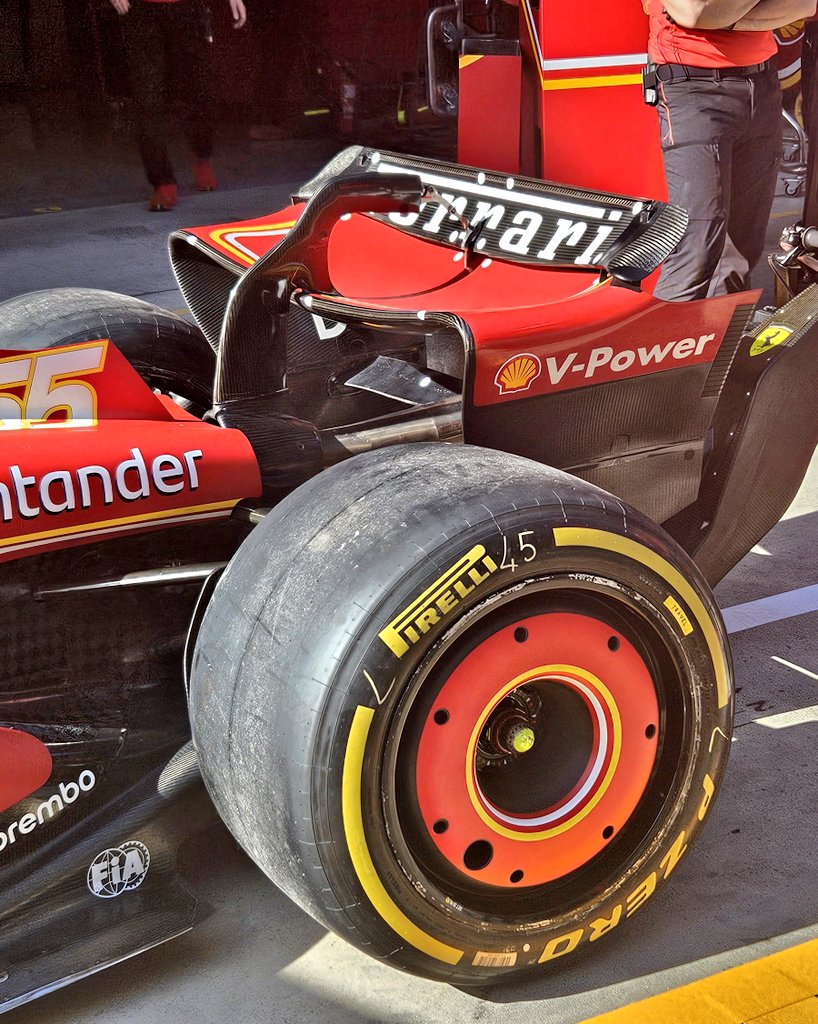

SF-24 @ China GP 2024





.poz
.poz
50
Joined: 08 Mar 2012, 16:44

Re: Ferrari SF-24

Post

If the problem of the overbite design is the "leakage" from sidepod inlet at high speed going in a critical area (and to minimize it RB used two small inlet) maybe Ferrari can try to direct it in the bypass duct

zioture
zioture
548
Joined: 12 Feb 2013, 12:46
Location: Italy

Re: Ferrari SF-24

Post

The Quest for Perfect Aerodynamics: Ferrari and Red Bull Compared

In the world of Formula 1, innovation and aerodynamic optimization are daily endeavors. Recently, engineer Cardile commented on the new air intake solutions adopted by Red Bull, comparing them to those currently used by Ferrari. This comparison has sparked a series of speculations and forecasts, some based on professional analysis, while others are purely hypothetical.

The debate mainly focuses on the effectiveness of Red Bull’s so-called “shark mouth belly” and whether Ferrari should consider adopting a similar approach. The question is whether such aerodynamic adjustments truly represent Red Bull’s competitive advantage and whether it is worthwhile for Ferrari to follow suit.

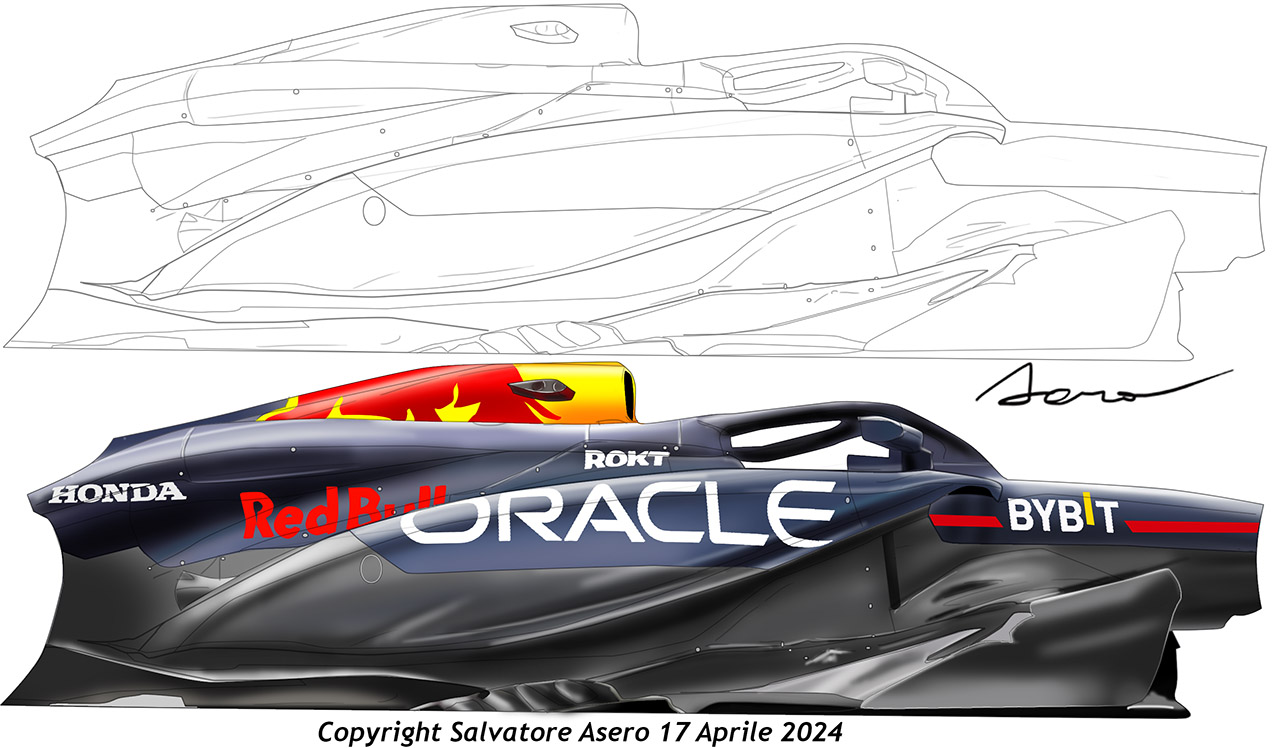

This year, Red Bull introduced an even more extreme configuration of the air intakes than in the past, with a cross-section that appears slimmer and more optimized. This solution, featuring an L-shaped slit, seems to divide the upper surface of the belly, which is descending, from the lower part that extends above the car’s floor, thus influencing the airflow towards the rear.

Detailed analysis reveals that, despite visual differences, the cross-sections of the bellies of Red Bull and Ferrari have similar concepts. Both solutions seem to work with significant three-dimensionality, managing the airflow in three fundamental components: the upper, the lower, and the lateral.

In conclusion, while Red Bull has certainly optimized the air intake section, it cannot be considered a revolution, but rather an evolution of existing solutions. Ferrari, in evaluating whether or not to follow this direction, must carefully consider whether such changes will lead to a significant improvement in performance or if it is merely a chase after a supposed aerodynamic “Holy Grail.”

If you want, here is the full video is in Italian, but just turn on the subtitles and the English translation to watch it


krmx37
krmx37
0
Joined: 28 Jan 2014, 16:13

Re: Ferrari SF-24

Post



Can someone tell me what that circled in yellow thing is ?
Is it the bargeboard ?
Its moving like crazy. Havent seen it on other cars

CaribouBread
CaribouBread
101
Joined: 29 Mar 2022, 08:37

Re: Ferrari SF-24

Post

krmx37 wrote:
20 Apr 2024, 15:21
https://ibb.co/YdNZ4dv


Can someone tell me what that circled in yellow thing is ?
Is it the bargeboard ?
Its moving like crazy. Havent seen it on other cars

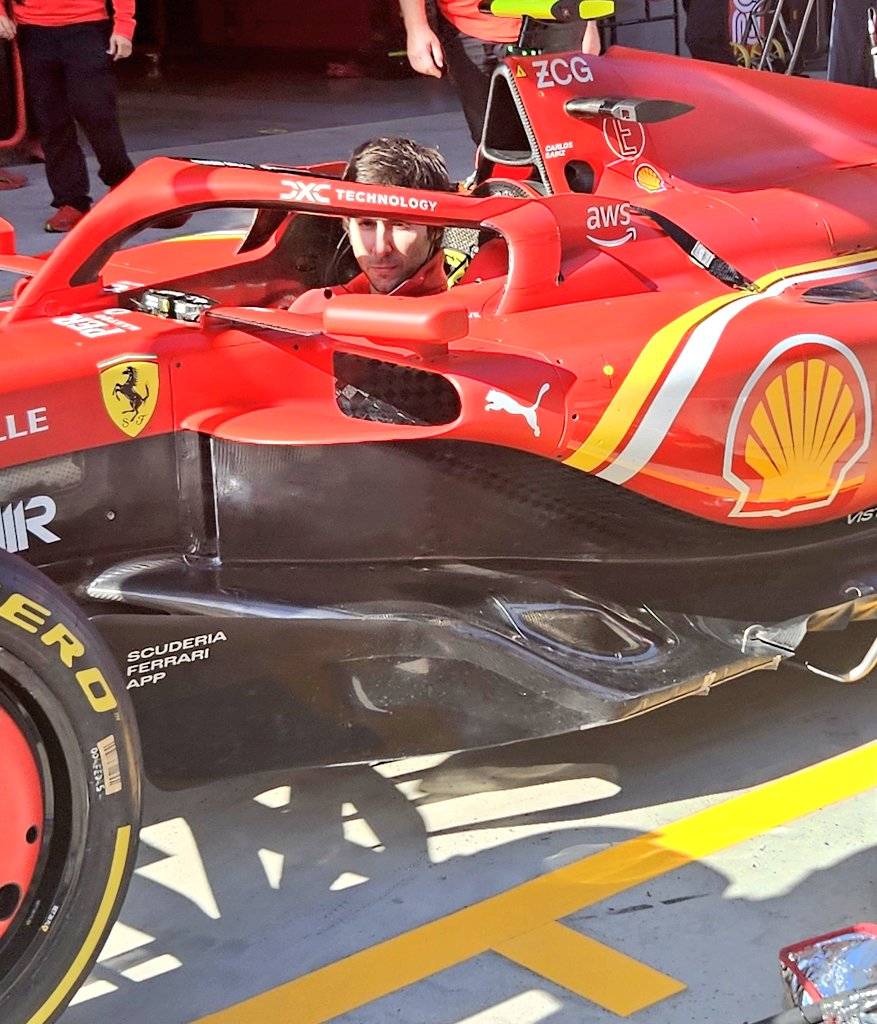

Front floor deflector vane. It does seem a bit wobblier on the Ferrari.

Look at the bit where it says Ferrari App

Sevach
Sevach
1081
Joined: 07 Jun 2012, 17:00

Re: Ferrari SF-24

Post

krmx37 wrote:
20 Apr 2024, 15:21
https://ibb.co/YdNZ4dv


Can someone tell me what that circled in yellow thing is ?
Is it the bargeboard ?
Its moving like crazy. Havent seen it on other cars
Yeah, i noticed this back in Australia.

User avatar
deadhead
52
Joined: 08 Apr 2022, 20:24

Re: Ferrari SF-24

Post


Venturiation
Venturiation
98
Joined: 04 Jan 2023, 19:48

Re: Ferrari SF-24

Post

First picture lower part and vertical entry reminds me of the W13 melted sidepod

wuzak
wuzak
467
Joined: 30 Aug 2011, 03:26

Re: Ferrari SF-24

Post

deadhead wrote:
24 Apr 2024, 22:54
https://ibb.co/my0Dd2x
Is it just me, or is there a touch of Ferrari 641 in the intake shown in the top image?

FDD
FDD
80
Joined: 29 Mar 2019, 01:08

Re: Ferrari SF-24

Post

wuzak wrote:
25 Apr 2024, 03:03
deadhead wrote:
24 Apr 2024, 22:54
https://ibb.co/my0Dd2x
Is it just me, or is there a touch of Ferrari 641 in the intake shown in the top image?
Yes that speculated CGI also reminds me on 641-641/2.
PS To me the most beautiful F1 car.
