Re: Red Bull RB15

Post

That's a pretty significant layout change for the front suspension. Maybe they try to emulate the Merc trick suspension with this.

User avatar
MtthsMlw
1036
Joined: 12 Jul 2017, 18:38
Location: Germany

Re: Red Bull RB15

Post

LuisFeF1 wrote:
25 Sep 2019, 15:28
https://live.staticflickr.com/65535/487 ... 8000_o.jpg

Russian GP: New reinforcement for Turning Vanes?
Steering rod but not connected yet?
Goes in that black hose in front of the lower wishbone

User avatar
ScrewCaptain27
577
Joined: 31 Jan 2017, 01:13
Location: Udine, Italy

Re: Red Bull RB15

Post

MtthsMlw wrote:
25 Sep 2019, 15:44
LuisFeF1 wrote:
25 Sep 2019, 15:28
https://live.staticflickr.com/65535/487 ... 8000_o.jpg

Russian GP: New reinforcement for Turning Vanes?
Steering rod but not connected yet?
Goes in that black hose in front of the lower wishbone
That is the steering rod.
"Stupid people do stupid things. Smart people outsmart each other, then themselves."
- Serj Tankian

User avatar
jjn9128
778
Joined: 02 May 2017, 23:53

Re: Red Bull RB15

Post

LuisFeF1 wrote:
25 Sep 2019, 15:28

Russian GP: New reinforcement for Turning Vanes?
Just looks like the push rod or track rod aren't connected. From the hole it's the track rod.
#aerogandalf
"There is one big friend. It is downforce. And once you have this it’s a big mate and it’s helping a lot." Robert Kubica

PhillipM
PhillipM
386
Joined: 16 May 2011, 15:18
Location: Over the road from Boothy...

Re: Red Bull RB15

Post

It's just the track rod not connected yet :lol:

User avatar
Sieper
73
Joined: 14 Mar 2017, 15:19

Re: Red Bull RB15

Post

nzjrs wrote:
25 Sep 2019, 14:32
ispano6 wrote:
25 Sep 2019, 14:10
If max downforce was the goal and if they still lacked downforce, then they indeed were adding drag. Straight line speed was honestly concerning but probably expected with high df package thinking they can make up time in the corners. Also the fact that they didn't bring parts to be able to go in a different direction seems rather silly. I'm sure they've learned a real good lesson.
I asked already, but I really wonder to what they could be referring when they said they didn't have the parts to change the setup. What is so difficult to transport that they could not bring with them? Considering they typically have parts for 1.5 complete spare cars trackside, does that imply they have another chassis version that is more/less/stiff? or some complete alternative suspension parts that were too heavy to bring with?

Its a fascinating insight IMO.
The way I understood the whole thing is that they simulated the Singapore race, thought that they did not need to put "full/maximum" downforce on the car so brought the slightly below Max DF parts. In hindsight they should have gone fro Max downforce anyway as VER was saying the balance was fine, just missing overall downforce. Probably they realized it to late to either fly in the Max DF package, or even so late that it was Q time already when they found they were lacking.

User avatar
LuisFeF1
125
Joined: 18 Nov 2014, 12:50

Re: Red Bull RB15

Post

PhillipM wrote:
25 Sep 2019, 16:22
It's just the track rod not connected yet :lol:
Oh God!!
That mistake!!
It is the steering bar not mounted yet !!
I'm sorry !!

User avatar
jjn9128
778
Joined: 02 May 2017, 23:53

Re: Red Bull RB15

Post

LuisFeF1 wrote:
25 Sep 2019, 18:52
PhillipM wrote:
25 Sep 2019, 16:22
It's just the track rod not connected yet :lol:
Oh God!!
That mistake!!
It is the steering bar not mounted yet !!
I'm sorry !!
It's not thtat mad if you remember the twin keels in the 2000s but it's aerodynamically sub-optimal, especially with the Y250.
#aerogandalf
"There is one big friend. It is downforce. And once you have this it’s a big mate and it’s helping a lot." Robert Kubica

User avatar
Morteza
2308
Joined: 10 Feb 2010, 18:23
Location: Bushehr, Iran

Re: Red Bull RB15

Post

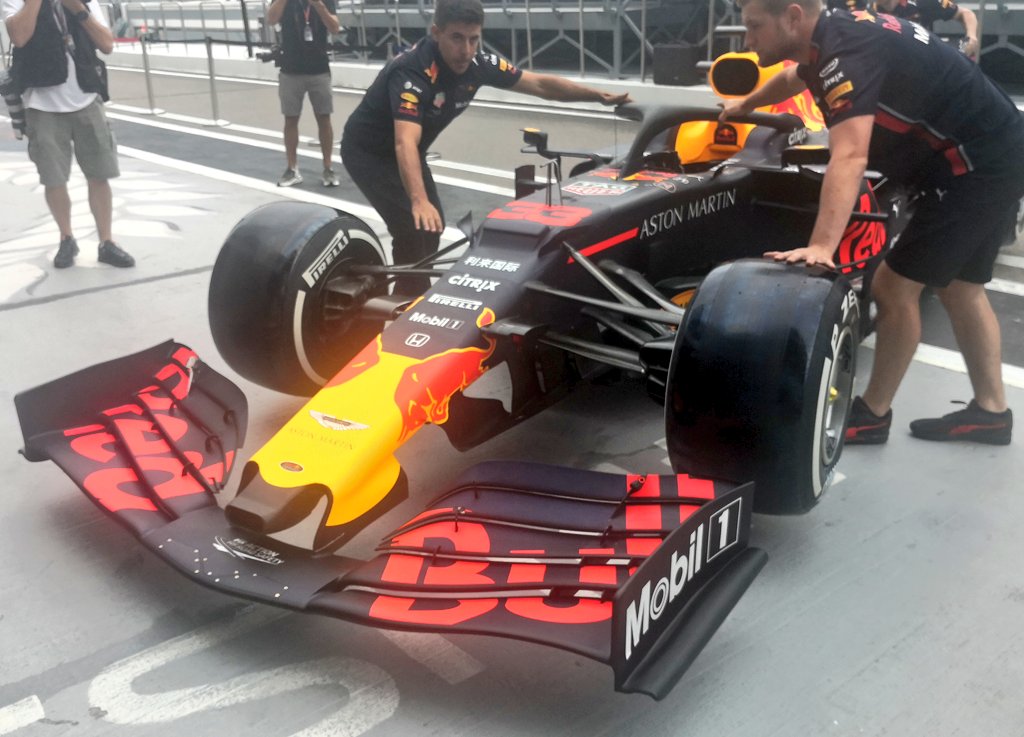

Sochi



Via AMuS
"A fool thinks himself to be wise, but a wise man knows himself to be a fool."~William Shakespeare

User avatar
HPD
198
Joined: 30 Jun 2016, 16:06

Re: Red Bull RB15

Post


Manfer
Manfer
18
Joined: 14 Feb 2015, 06:45

Re: Red Bull RB15

Post

They had changed the bargeboard profile in Singapore. There is a LuisF1 post in the previous page.

User avatar
HPD
198
Joined: 30 Jun 2016, 16:06

Re: Red Bull RB15

Post

Manfer wrote:
26 Sep 2019, 15:15
They had changed the bargeboard profile in Singapore. There is a LuisF1 post in the previous page.
Yes. But apparently it is not used for the race.

User avatar
Marti_EF3
56
Joined: 30 May 2017, 00:45
Location: Spain

Re: Red Bull RB15

Post


User avatar
Morteza
2308
Joined: 10 Feb 2010, 18:23
Location: Bushehr, Iran

Re: Red Bull RB15

Post

More photos from Sochi (via AMuS)


"A fool thinks himself to be wise, but a wise man knows himself to be a fool."~William Shakespeare

User avatar
lio007
316
Joined: 28 Jan 2013, 23:03
Location: Austria

Re: Red Bull RB15

Post

Pretty bad quality, but in the following photo we get an idea how much space is between engine cover and top cooler

Some more, very cool detailled AMuS-shots:


Here we can clearly see the new barge board arrangement:
