Ferrari SF1000

A place to discuss the characteristics of the cars in Formula One, both current as well as historical. Laptimes, driver worshipping and team chatter do not belong here.
wowgr8
wowgr8
29
Joined: 11 Feb 2020, 20:35

Re: Ferrari SF1000

Post

nico5 wrote:
01 Oct 2020, 10:00

The Styrian GP version is missing from this comparison. In was like an intermediate step. Looks like Ferrari are only comfortable making very subtle changes to their FW.
Seems like nearly the entire budget goes into tweaking that front wing. 80% of their "upgrades" this year have been limited to that

Sevach
Sevach
1081
Joined: 07 Jun 2012, 17:00

Re: Ferrari SF1000

Post

nico5 wrote:
01 Oct 2020, 10:00
The Styrian GP version is missing from this comparison. In was like an intermediate step. Looks like Ferrari are only comfortable making very subtle changes to their FW.
I agree with that view, but the thing is the Styrian wing wasn't a "full upgrade", Ferrari still used the pre-season wing on many races.
For the most part the Styrian wing matched with the low downforce package while the pre season version matched with the high downforce one.
In many ways this new wing combines characteristics of the Styrian wing with the pre-season one.

I'd say the reason why the comparison only includes Pre-season vs Sochi version is, that's what Ferrari was doing on friday at Sochi, they were going back and forth between those 2 models with their 2 drivers, the Styrian wing wasn't present.

User avatar
humble sabot
27
Joined: 17 Feb 2007, 10:33

Re: Ferrari SF1000

Post

the four immutable forces:
static balance
dynamic balance
static imbalance
dynamic imbalance

FDD
FDD
80
Joined: 29 Mar 2019, 01:08

Re: Ferrari SF1000

Post

humble sabot wrote:
03 Oct 2020, 08:22
Looks to me like the cape is a smidge longer too
I think that the turning vanes are more longer and closer to the cape or maybe both.
Last edited by FDD on 03 Oct 2020, 10:57, edited 1 time in total.

f1316
f1316
80
Joined: 22 Feb 2012, 18:36

Re: Ferrari SF1000

Post

Obviously it’s FAR more complicated than just sticking a thinner nose on car like this Ferrari and expecting gains - and in and of itself it’s probably not necessarily ’better’ (it’s to do with the entire concept) - but one thing you would think from eyeball CFD is that it’d be lower drag. I wonder if this is another case where Ferrari designed the car around some ‘dirty’ downforce (the wide nose itself will create some) and then got stuck with an underpowered car that can’t compensate > they’re unable to change to a lower drag concept without a much greater chassis redesign?

ryaan2904
ryaan2904
36
Joined: 01 Oct 2020, 09:45

Re: Ferrari SF1000

Post

Making the cars' nose thinner in on itself is a very big task to do, and that is without considering the front and rear aero correlation. So I doubt it would happen this season or the next.
Also, cars with the 'in-board' loaded front wings (Ferrari, haas, Alfa) actually benefit from a wider nose since it generates more downforce at higher speeds, downforce that they cant generate from the front wings alone. The only problem here is that at slow speed this nose is prone to stall. And a thin nose looks cooler.
CFD Eyes of Sauron

User avatar
gordonthegun
254
Joined: 28 Mar 2019, 23:33
Location: Monza, Italy.

Re: Ferrari SF1000

Post

New floor entry?:

Last edited by gordonthegun on 09 Oct 2020, 23:58, edited 4 times in total.

User avatar
MtthsMlw
1036
Joined: 12 Jul 2017, 18:38
Location: Germany

Re: Ferrari SF1000

Post

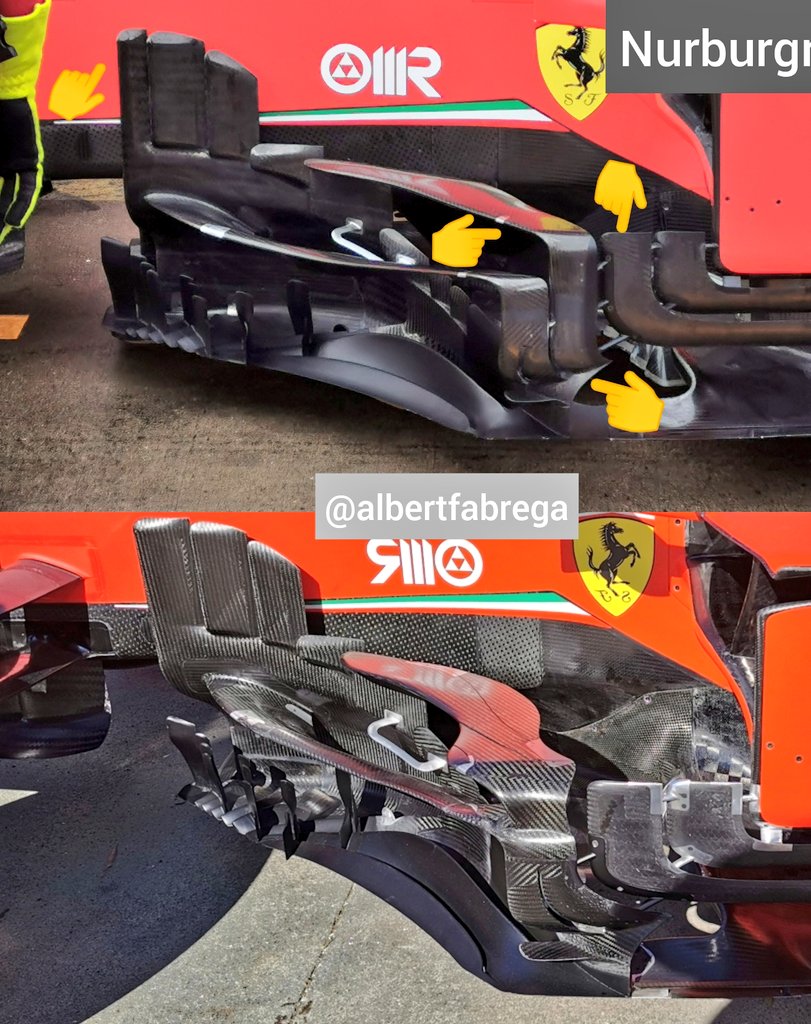

Upgraded "floor teeth" and minor changes to the vertical part of the two boomerrangs where they attach to the sidepod deflector.

Old:

Sevach
Sevach
1081
Joined: 07 Jun 2012, 17:00

Re: Ferrari SF1000

Post


User avatar
MtthsMlw
1036
Joined: 12 Jul 2017, 18:38
Location: Germany

Re: Ferrari SF1000

Post

Nothing new here yet.

User avatar
mclaren111
280
Joined: 06 Apr 2014, 10:49
Location: Shithole - South Africa

Re: Ferrari SF1000

Post


Xwang
Xwang
29
Joined: 02 Dec 2012, 11:12

Re: Ferrari SF1000

Post

What is the scope of that metallic part which resembles an handle?
It seems extremely crude. Isn't it?

User avatar
PlatinumZealot
559
Joined: 12 Jun 2008, 03:45

Re: Ferrari SF1000

Post

Xwang wrote:
09 Oct 2020, 16:36
What is the scope of that metallic part which resembles an handle?
It seems extremely crude. Isn't it?
It is a bracket to hold the vanes.

It looks OK to me. It has to be rigid but thin for to hold the vane steady and not to obstruct air flow too much.
🖐️✌️☝️👀👌✍️🐎🏆🙏

Racing Green in 2028

Just_a_fan
Just_a_fan
593
Joined: 31 Jan 2010, 20:37

Re: Ferrari SF1000

Post

Xwang wrote:
09 Oct 2020, 16:36
What is the scope of that metallic part which resembles an handle?
It seems extremely crude. Isn't it?
It links two parts together to stop them vibrating/deflecting. Knowing F1, it'll be made from some rare and exotic metal that is only found in meteorites. :lol:
If you are more fortunate than others, build a larger table not a taller fence.

User avatar
godlameroso
309
Joined: 16 Jan 2010, 21:27
Location: Miami FL

Re: Ferrari SF1000

Post

Good spot, there's a slight curve at the edge of the bargeboard where the pink line is.
Saishū kōnā
