Aston Martin AMR22

[bagajohny]

Top view comparison of AMR22 and VF22

[nokivasara]

Actual car at the launch event.

https://i.ibb.co/HPPkjZ2/h21q8ol2s0h81- ... -tta-1.png

https://ibb.co/YddqxgW

The cars look so much better with less rake!

[godlameroso]

the floor detail looks interesting, can someone who can see aero comment on this compared to the other floors so far?

https://i.imgur.com/pN1H3Jy.png

Hard to tell without seeing the under floor strakes. Those will determine what the airflow under the floor is going to do. When bodywork makes air turn into itself, or expand the static pressure rises. When bodywork converges it accelerates air. But when air reaches a critical speed, converging it will raise static pressure and expanding it will accelerate it further. The air going under the car can reach such speeds, but not the air going over the car.

Both AM and Haas are using a big undercut, and the final end fence to channel air over the floor, to raise the mass flow in that area. That area just happens to be the diffuser kick where the pressure is lowest. The edge wing is there to further raise the pressure above the floor and create a bigger differential between the tunnel and floor upper surface.

[AeroDynamic]

in this render, there are vertical slots towards the edge of the rear wing down the side plate. They aren't there on the real built car in the reveal photos or even some of the other renders?



in this render below, its only appearing on the left side plate of the rear wing?

[siskue2005]

cooling louvers have to sit inside this box - again AM look to have maximized the area they can use

[LM10]

The two launched cars (I don’t mention RedBull) look significantly different to each other - already visible at the first look. I would have not expected it to be that clear. But I love it. Exciting to see the totally different approaches.

[AeroDynamic]

[Stu]

Are there minimum radius rules for the sidepods? The transition from the flat panel to the rest of the sidepod is quite sharp.

Yes. What flat panel do you mean?

I don't think the minimum radius rule applies to the junction of the floor and the sidepod.

The flat area right next to the intakes.
https://i.postimg.cc/FsF3TBqy/2022-02-10-19-46-04.png

The more I look at that the more convinced I am that the outer ‘flat’ section is recessed at the bottom. Almost as it it is a filler panel.

[Stu]

That front wing adjusters on the inside will need two "enthusiastic" mechanic for a 2 sec pit stop.

The hinge design is also obviously designed to shed a vortex with that nice big triangle of metal sticking up in to the airflow at a slight angle to the stream.

There also doesn’t seem to be an outer part of the hinge, are they using the remaining outer section as a very big flexure hinge?

[Big Tea]

It still looks strange to only have one tail pipe. Like something missing

[Just_a_fan]

That front wing adjusters on the inside will need two "enthusiastic" mechanic for a 2 sec pit stop.

The hinge design is also obviously designed to shed a vortex with that nice big triangle of metal sticking up in to the airflow at a slight angle to the stream.

There also doesn’t seem to be an outer part of the hinge, are they using the remaining outer section as a very big flexure hinge?

There's something visible in this image at the far end of the front wing. Another little metal triangle. I'm guessing that it is the location of a hinge point.

[timbo]

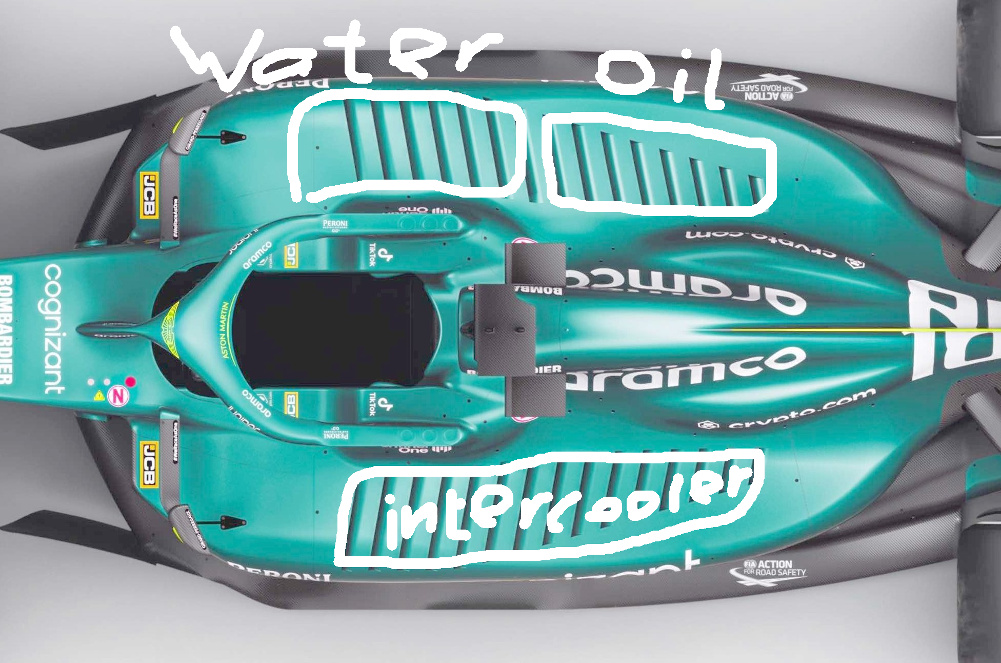

Do you think radiators are set something like this (side not important)?
I.e. cooling system takes most of the area of the sidepod, or the sidepod size is only to condition the flow over the floor?

[Stu]

The hinge design is also obviously designed to shed a vortex with that nice big triangle of metal sticking up in to the airflow at a slight angle to the stream.

There also doesn’t seem to be an outer part of the hinge, are they using the remaining outer section as a very big flexure hinge?

There's something visible in this image at the far end of the front wing. Another little metal triangle. I'm guessing that it is the location of a hinge point.

https://pbs.twimg.com/media/FLPsB_XVkAg ... name=large

Certainly looks like it.
It would also appear that both elements (3 & 4) adjust.

[BassVirolla]

The venturi looks like it's doing this... or am i seeing things?!

https://pbs.twimg.com/media/FLP33lMWUAM ... name=large

The two "kinks" could serve to energize the flow to prevent stalling of the diffusser and keep the flow attached while working the floor harder than possible without the kinks?

[the EDGE]

That front wing adjusters on the inside will need two "enthusiastic" mechanic for a 2 sec pit stop.

The hinge design is also obviously designed to shed a vortex with that nice big triangle of metal sticking up in to the airflow at a slight angle to the stream.

There also doesn’t seem to be an outer part of the hinge, are they using the remaining outer section as a very big flexure hinge?

Are you not really reading to much into a render of a FW? I mean, only one side of the car has a pushrod

It’s great to finally see a proper impression of a 22 car, but the detail will be vastly different on track, including having proper cooling outlets, suitable for the ambient temperature conditions on that day

Looking forward to see how other teams have handled the sidepod designs before they all converge on the same idea again. It will be interesting to see who’s got the overall airflow philosophy correct
